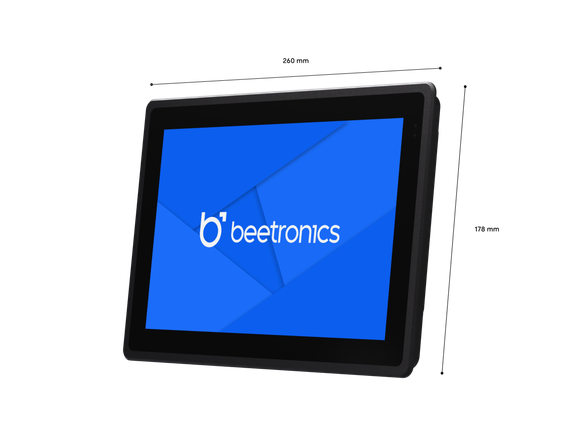

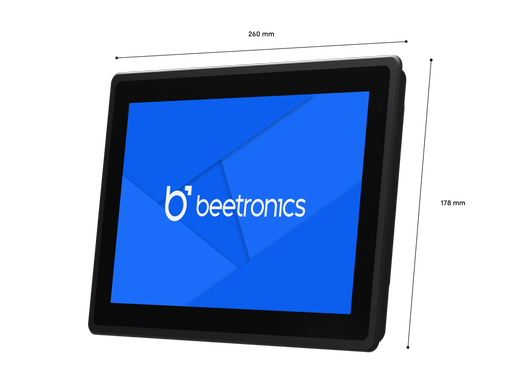

10 Inch Touchscreen Metal (High Brightness)

10 Inch Touchscreen Metal
(High Brightness)

Model: 10HB9M/U1

100+ units in stock

Product Information

High brightness full HD multi-touch panel

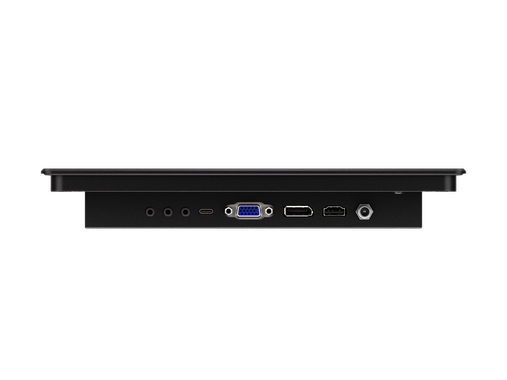

Input: HDMI, DisplayPort, USB-C, VGA
Mounting: Flush, embedded, panel mount
External dimensions: 10.2 x 7.0 x 1.5 inches

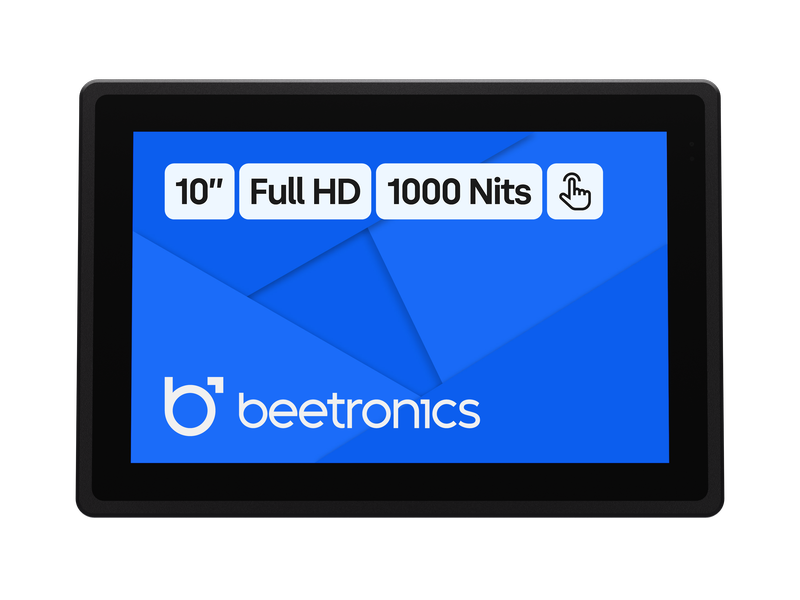

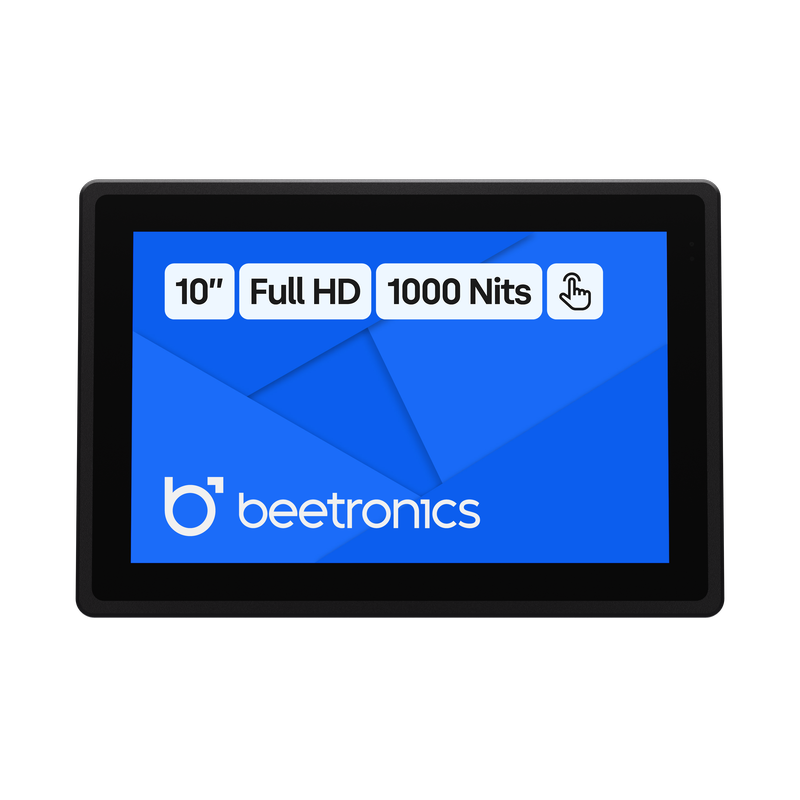

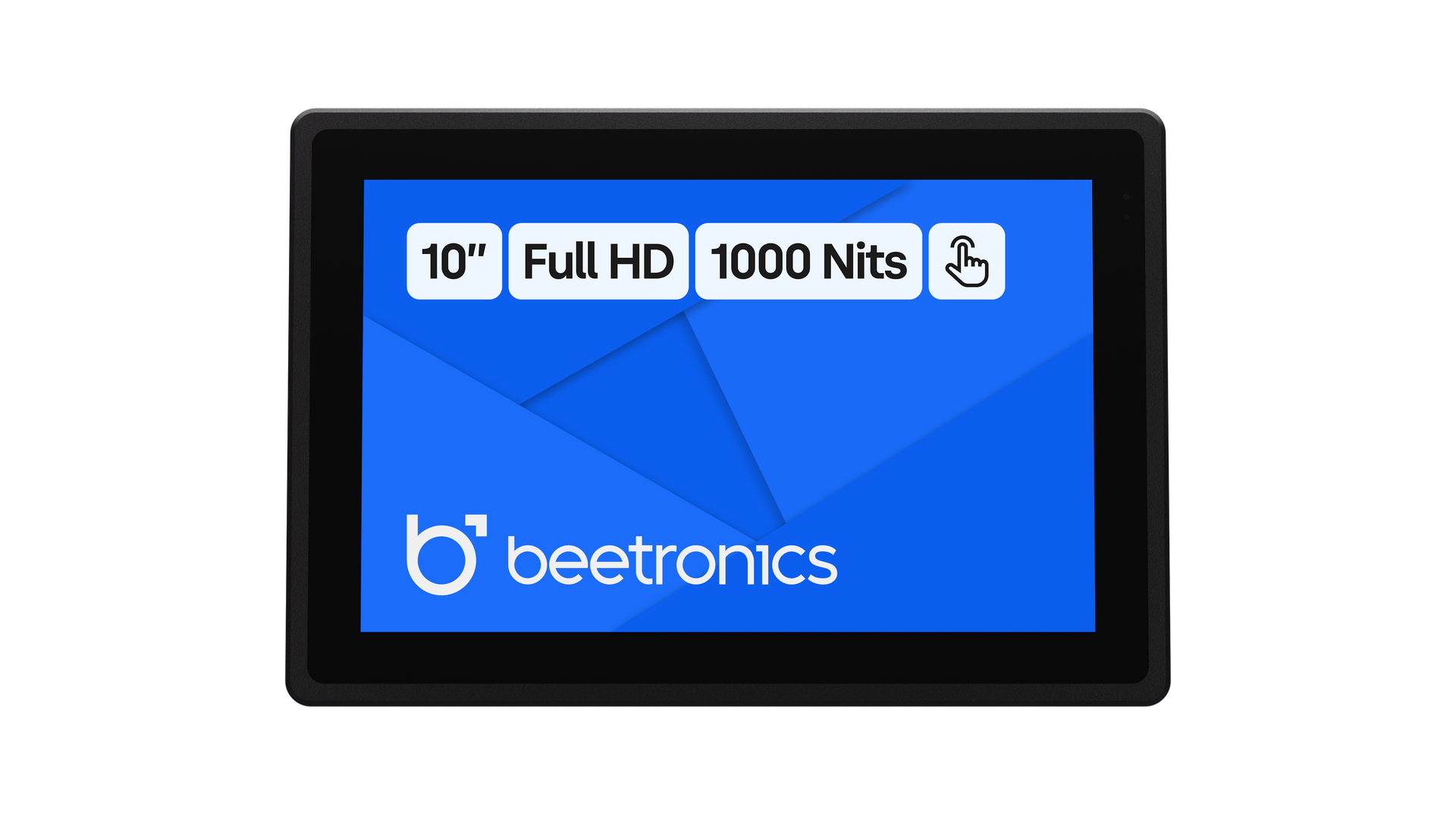

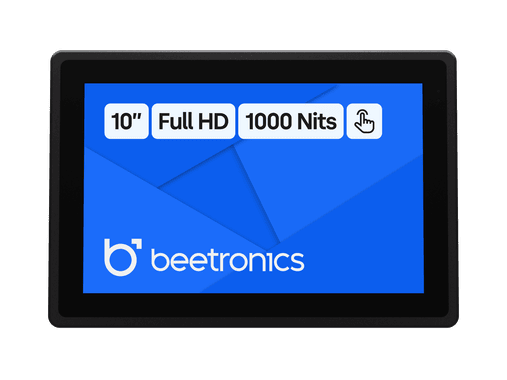

This 10-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 NITS. The display is designed for both indoor and outdoor use and ensures excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 10HB9M/U1 can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

CAD $999.00

Order by 4:30 PM ET for same-day shipping

Long-Term Availability Consistently available for years to come.

Free Shipping & Returns No shipping costs and free 30-day returns.

5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.

Sunlight-Readable Full HD Multi-Touch Panel

The 10-inch touchscreen monitor comes with a Full HD panel that offers sharp images and accurate colours. The touchscreen features an optically bonded matte front panel with a high brightness level of 1000 nits. This provides clear, reflection-free viewing even in the brightest environments.

Thanks to the integrated light sensor, the screen’s brightness can automatically adjust based on the surrounding light levels. You also have the option to manually adjust the brightness using the included remote control or an optional dimmer knob.

Compatible With Windows, macOS, ChromeOS and Linux

This 10-inch touchscreen monitor is compatible with devices running Windows, macOS, ChromeOS, or Linux operating systems. It offers versatile connectivity options, including HDMI, DisplayPort, USB-C and VGA display inputs. Touch functionality is easily enabled via the included USB cables. Once connected, the display is automatically recognized and ready for immediate use.

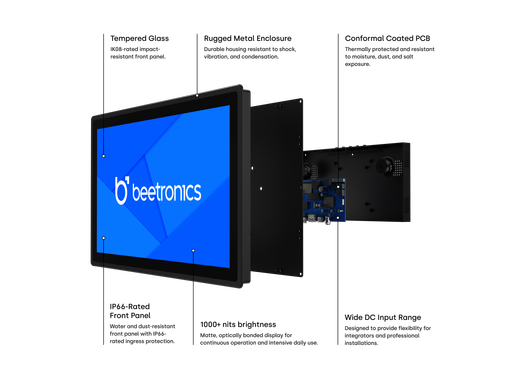

Designed for Professional Use

The 10HB9M/U1 is designed for professional applications and continuous use. It features high-quality industrial components and is encased in a durable metal housing with an impact-resistant front panel.

This display supports a wide input voltage range of 10-36V DC, making it compatible with standard outlets as well as common 12V and 24V power sources.

Mounting Options

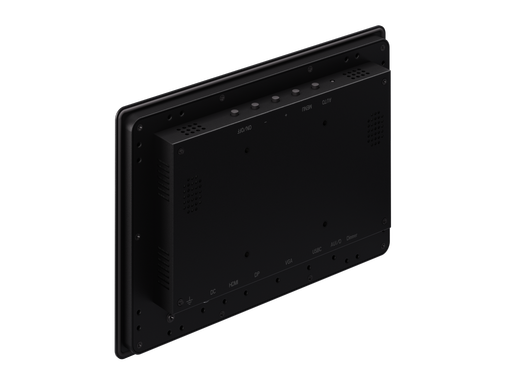

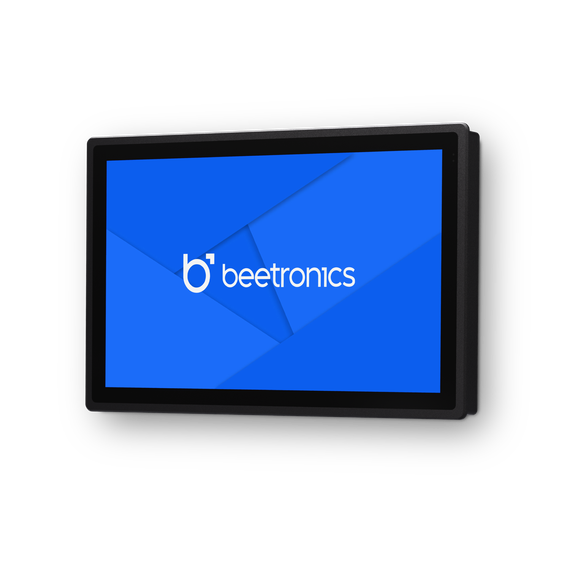

Panel Mount

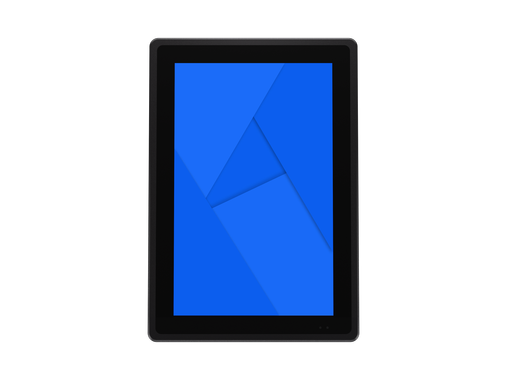

The monitor is designed for panel mounting, delivering a robust, water-resistant, and dust-proof solution. With its sleek, symmetrical bezel and integrated rubber sealing ring, it ensures a seamless, professional finish. This maintenance-free touchscreen requires no ventilation and is built for both indoor and outdoor environments. It supports mounting in both landscape and portrait orientations, offering flexible installation options to suit a variety of settings.

Wall Mount

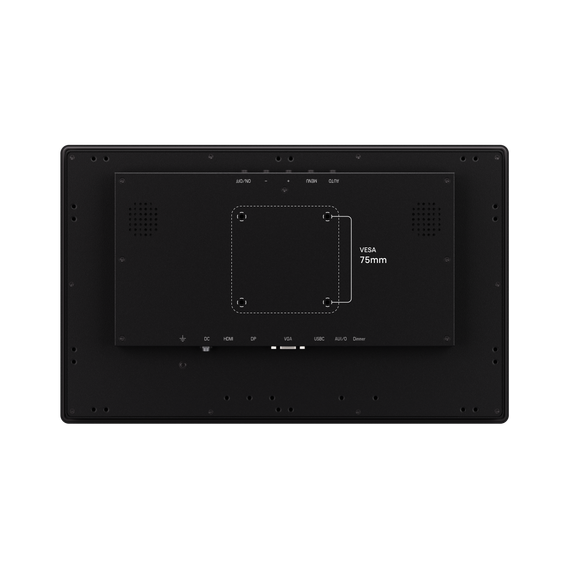

The touchscreen includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Stand

The touchscreen is equipped with a universal 75mm VESA mounting pattern on the back of the housing. This allows the touchscreen to be mounted on our optional VDK5 desk stand, as well as on universal stands and mounting brackets. It can be mounted in both landscape and portrait orientation.

General

Manufacturer: Beetronics
Item Number: 10HB9M/U1
Product Name: 10 Inch Touchscreen Metal (High Brightness)
Warranty: 2 Years
Datasheet: Download PDF
Drivers: Download Touchscreen Driver
User Manual: Download PDF
Quickstart: Download PDF

Supported Operating Systems

Windows: Windows 8, 10, 11
Windows Embedded: Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS: Tahoe, Sequoia, Sonoma
Linux: All Linux Distributions
ChromeOS: All ChromeOS Versions
Brightsign: All BrightsignOS Versions
Samsung DeX: All Samsung DeX Versions

Panel

Diagonal Size: 10.1 Inches (258 mm)
Aspect Ratio: 16:10 (16:9, 4:3 Adjustable)
MTBF: 50K
Native Resolution: 1920 x 1200
Supported Resolutions: 1920 x 1200 (max), 640 x 480 (min)
Pixels Per Inch: 224 PPI
Brightness: 1000 nits
Contrast: 900:1
Colour Encoding System: PAL/NTSC/SECAM
Viewing Angle: 170° Horizontal, 170° Vertical
Surface: Tempered Glass (Matte)
Touch Technology: Capacitive, 10-Point Multi-Touch (PCAP), Optically Bonded
Touch Control: Stylus, Hand, Glove

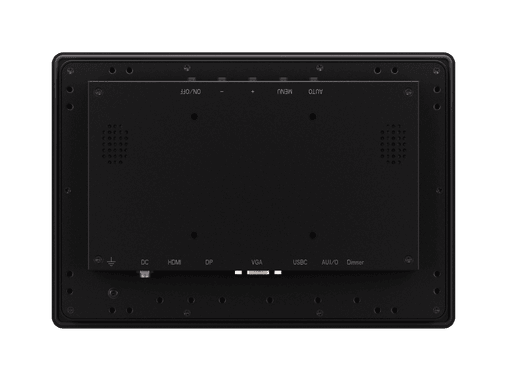

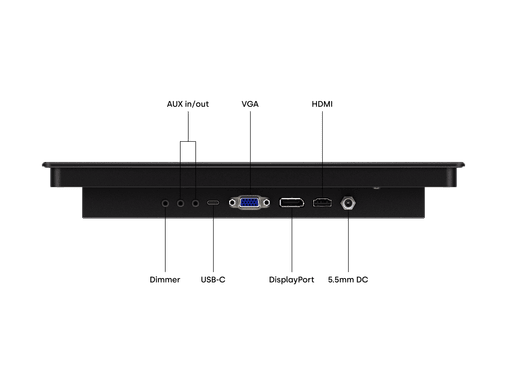

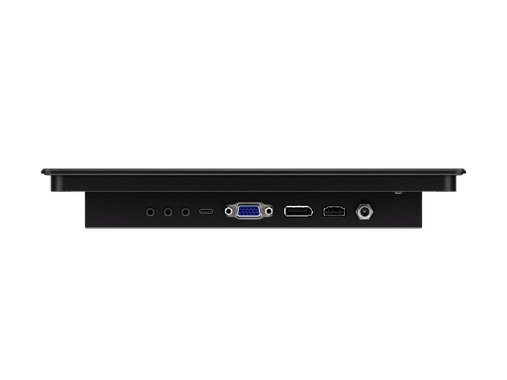

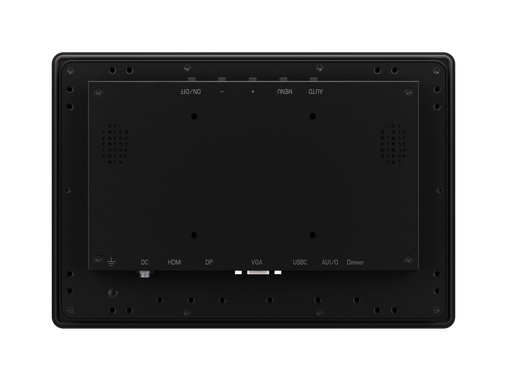

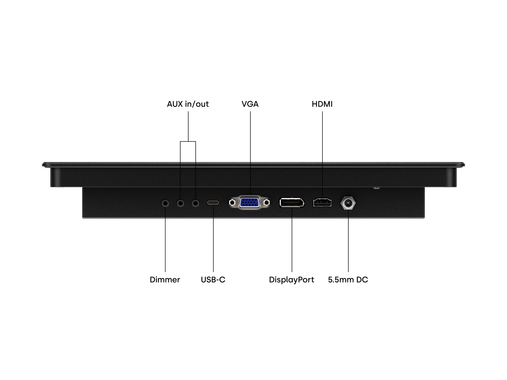

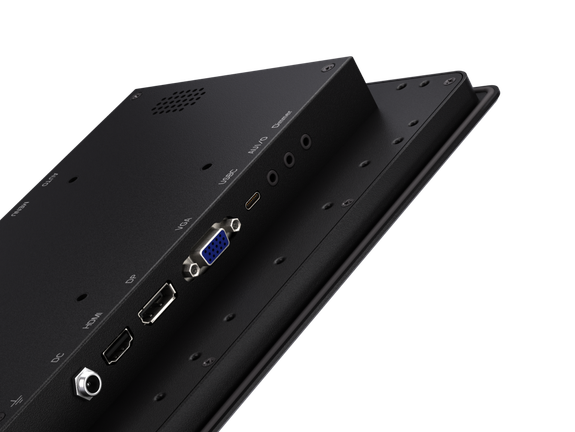

Connectivity

HDMI: 1x
DisplayPort: 1x
VGA: 1x
USB-C: 1x Video, Audio, Touch
USB-A: Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX Input (3.5mm): 1x
AUX Output (3.5 mm): 1x

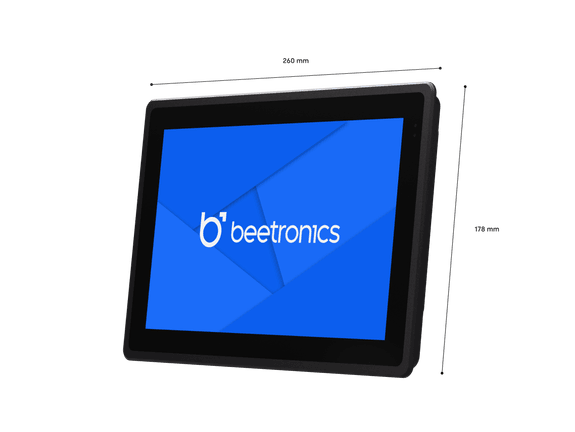

Size & Weight

Colour: Black

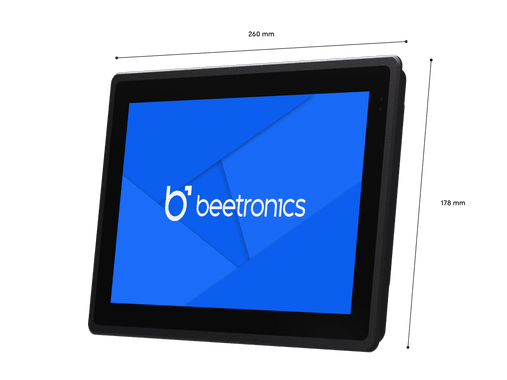

Dimensions (Without Stand): 10.2 x 7.0 x 1.5 Inches
Active Area: 8.6 x 5.4 Inches
Weight: 3.3 lbs
Technical Drawing (2D): Download PDF
Technical Drawing (3D): Download CAD/STP

Features & Functions

Key-Lock: The control buttons can be blocked.
Auto-On: Automatically powers on when it receives current or a signal.
Dimmable: Automatic dimming based on ambient light via an integrated light sensor. Manual dimming via the remote control or an optional dimmer knob.

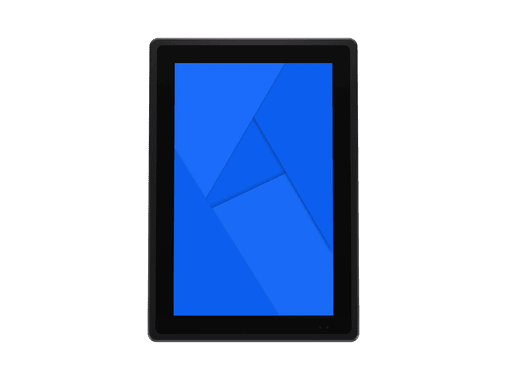

Orientation: Landscape, Portrait, Face-up

Power

Input Voltage: DC 10-36V
Consumption: 9 W (On), 0.4 W (Standby)
Power Supply: External DC (Power Adapter Included)
Power Adapter: Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector: DC Barrel Plug 2.1mm x 5.5mm

Environmental

Operating Temperature: -4°F to +158°F
Storage Temperature: -22°F to +176°F
Operating Humidity: 10% - 90% Non-Condensing

Mounting

Wall Mount: VESA 75x75mm
Flush Mount: Panel Mount Accessories Included

Compliance

Ingress Protection (IP): IP66 When Panel Mounted
Impact Protection (IK): IK08
Standards & Certifications: CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, SAE J1113, EN50155, EN45545-2, CCC, CAN ICES-003(A)/NMB-003(A)

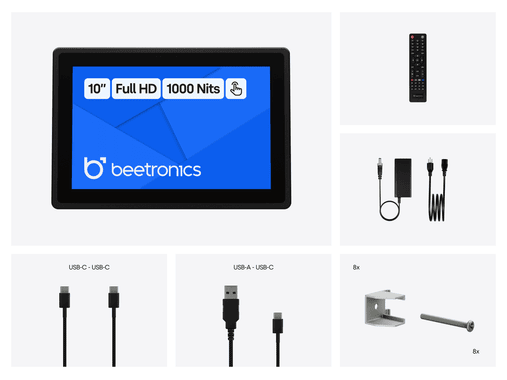

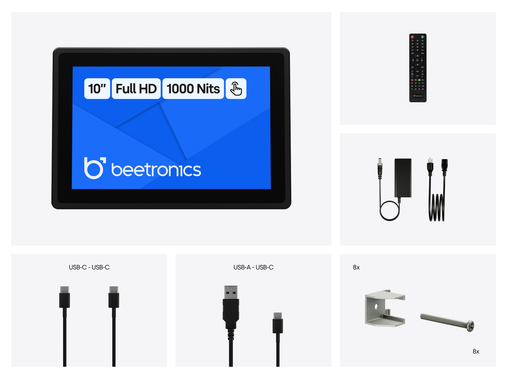

Package Content

Includes: Touchscreen, USB-C to USB-C Cable, USB-C to USB-A Cable, Remote Control, Mounting Clamps (8x), Mounting Strips (8x), Screws (8x), Rubber Seal, Power Adapter, Manual
