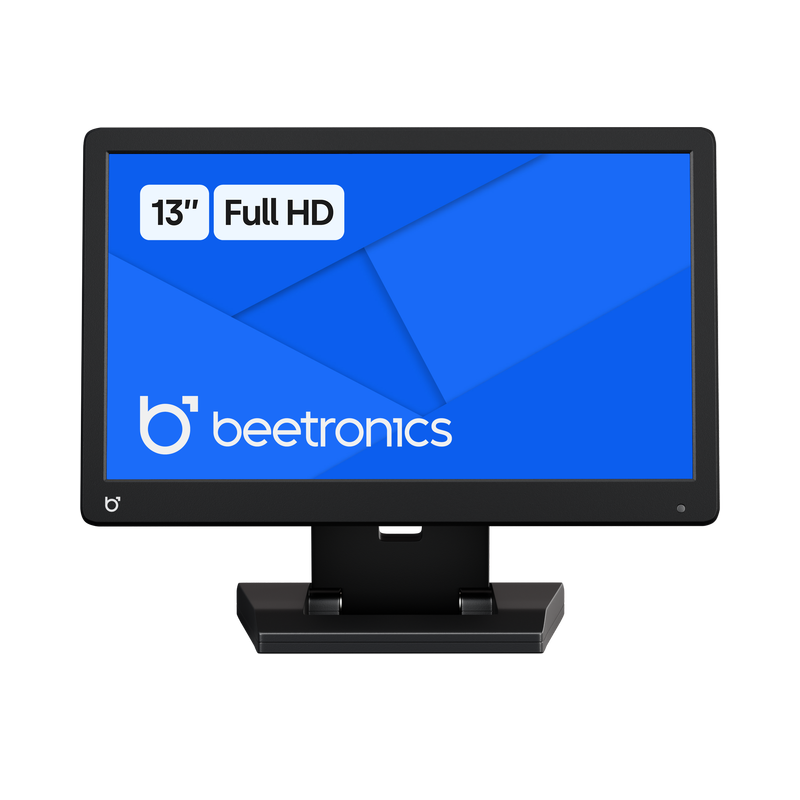

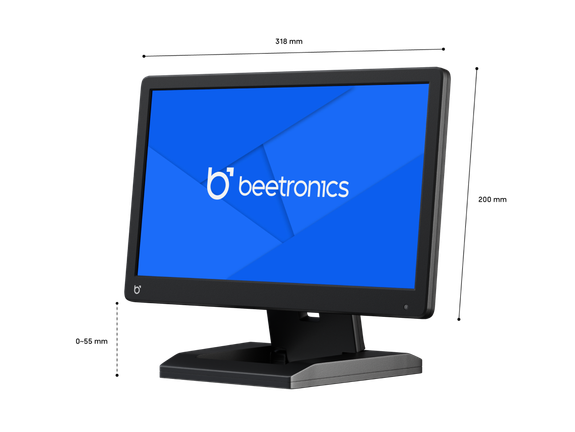

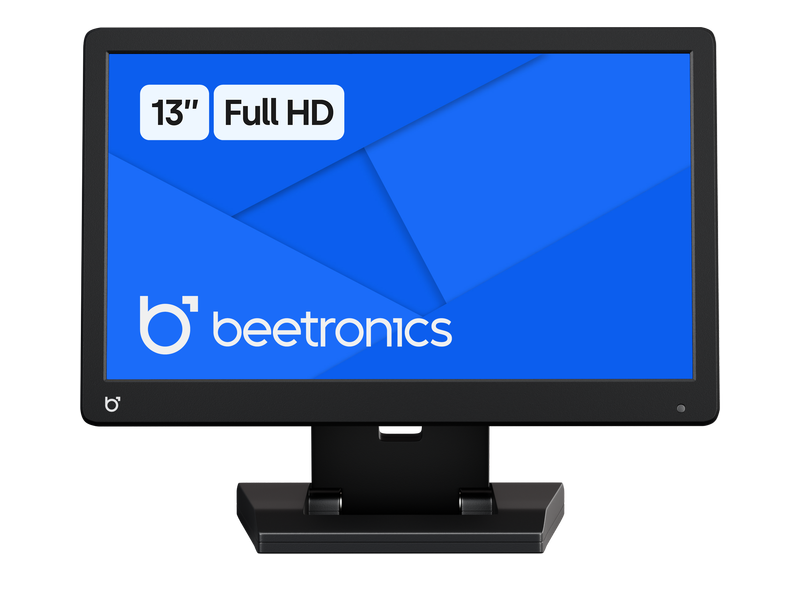

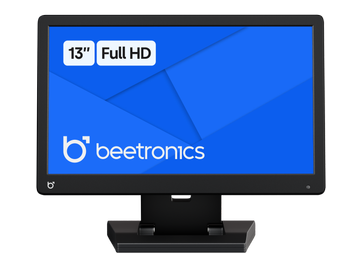

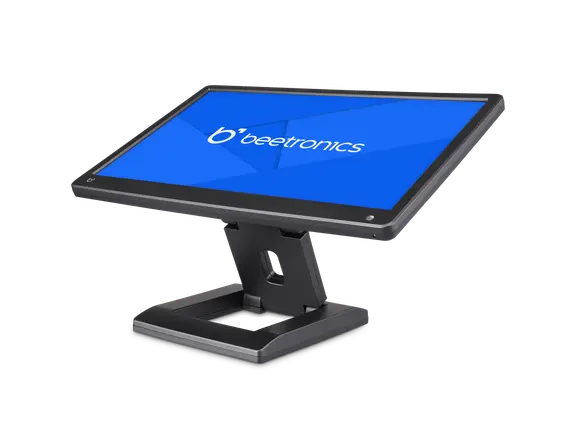

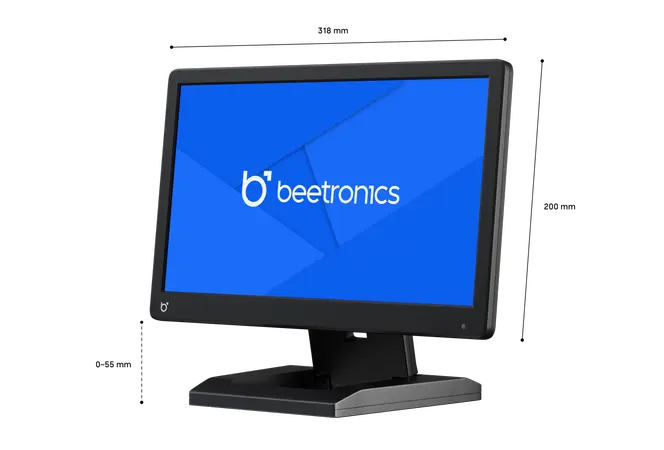

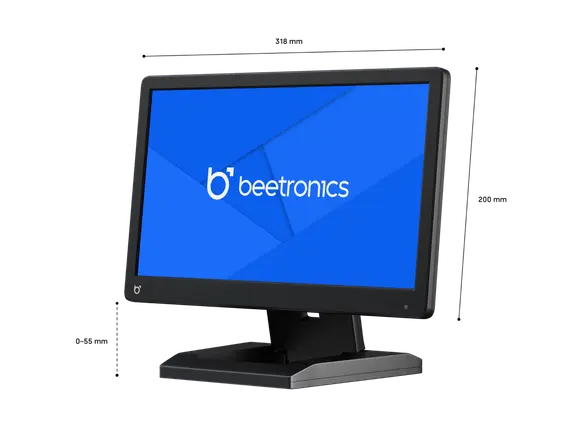

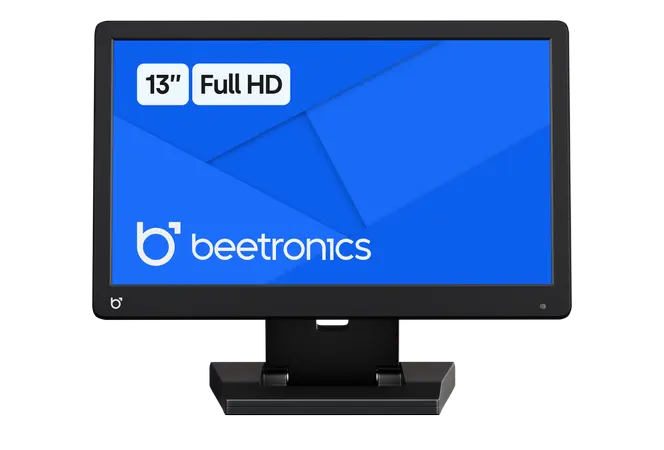

13 Inch Monitor

Model: 13HD7
100+ units in stock
Product Information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop

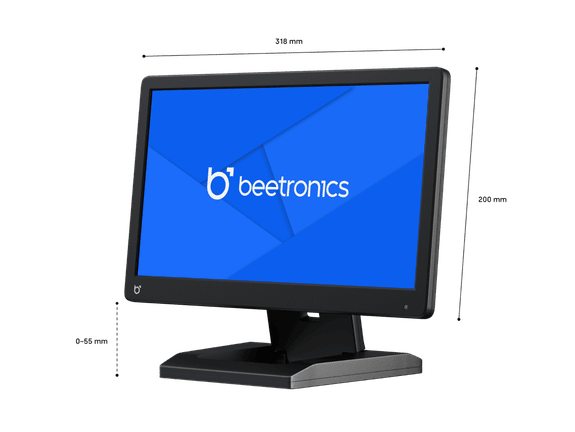

  4. External dimensions: 12.5 x 7.9 x 1.3 inches

This 13-inch Full HD monitor delivers exceptional picture quality with wide 178° viewing angles. Its lightweight design makes it perfect for both desktop and wall mounting. The 13HD7 provides versatile connectivity options, including HDMI, VGA, BNC, and RCA connections.

Display Type
CAD $539.00
Order now for next-business-day shipping
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.
Product Highlights

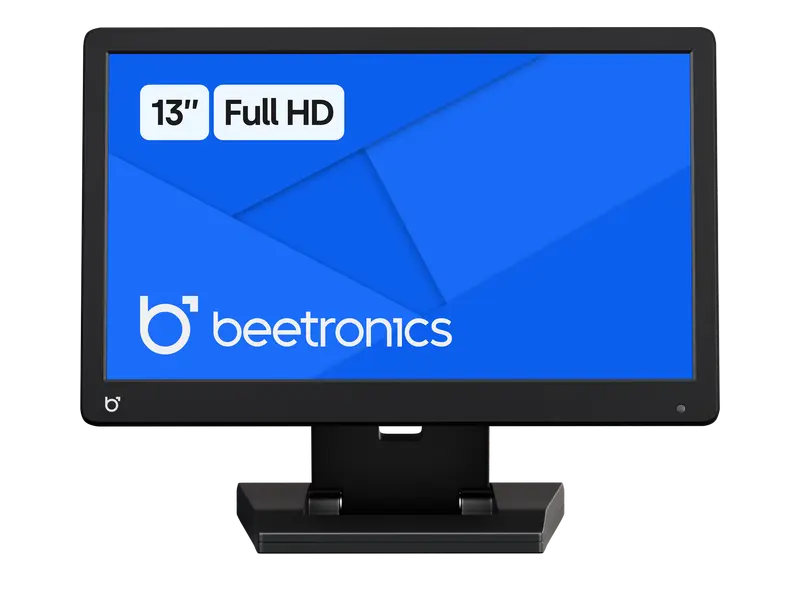

13 Inch Monitor

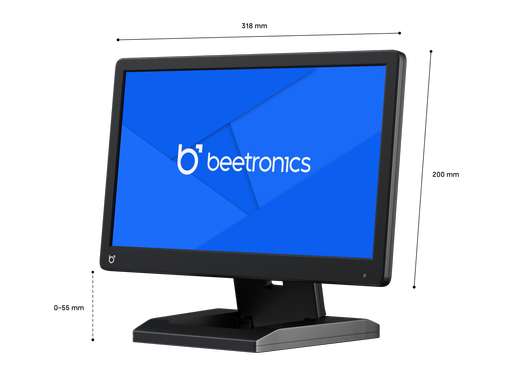

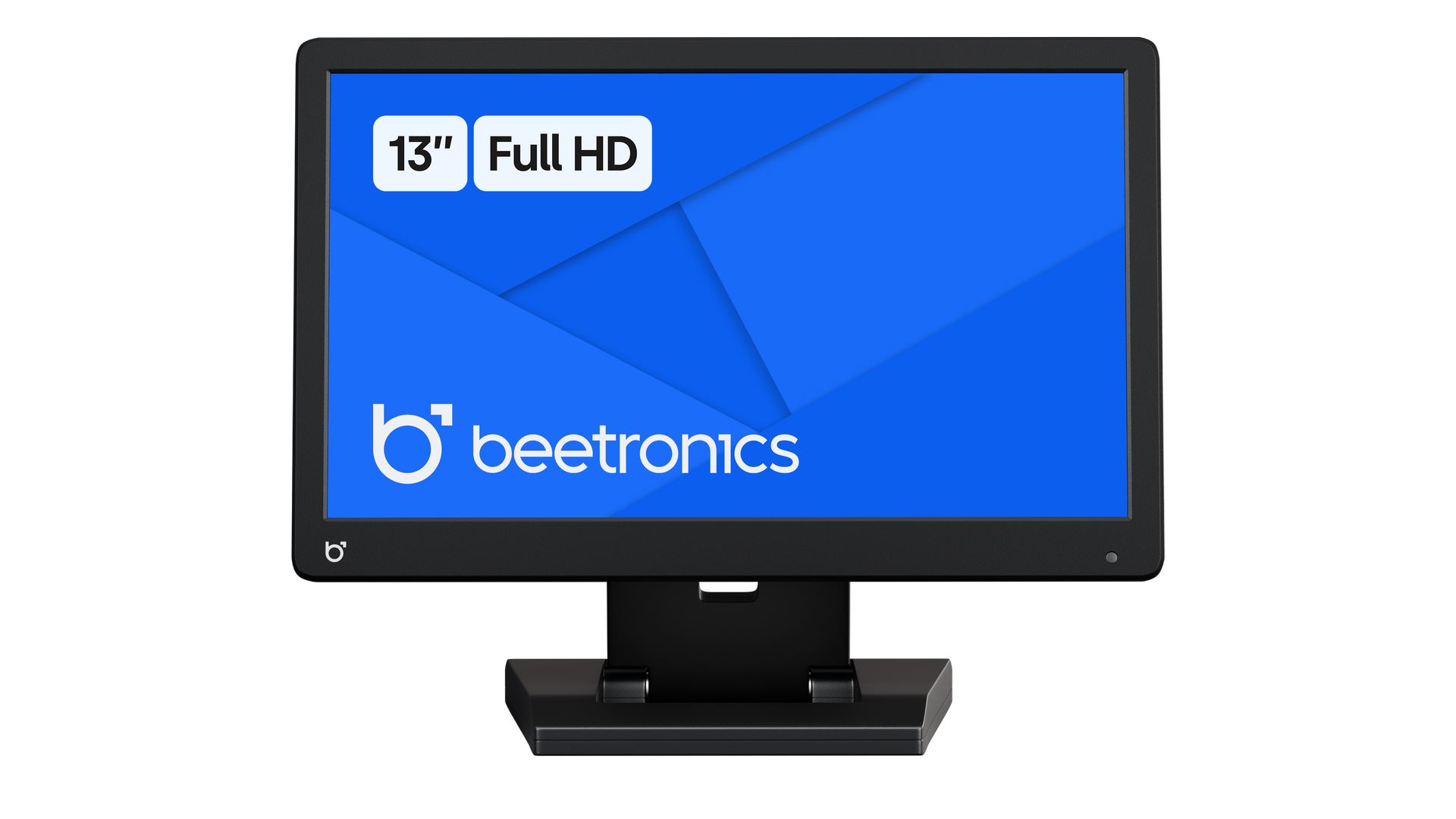

Exceptional Full HD Picture Quality

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, colour, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

13 Inch Monitor

Versatile Connectivity

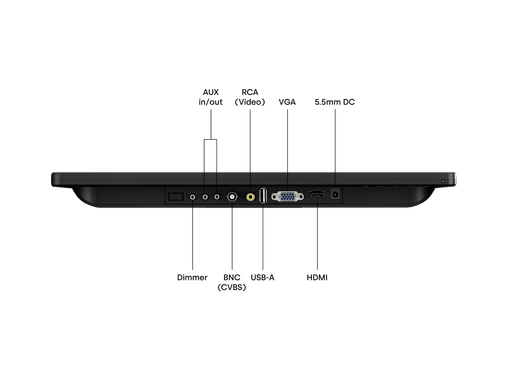

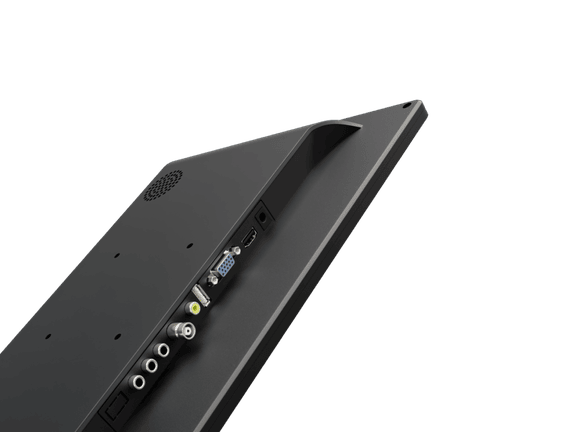

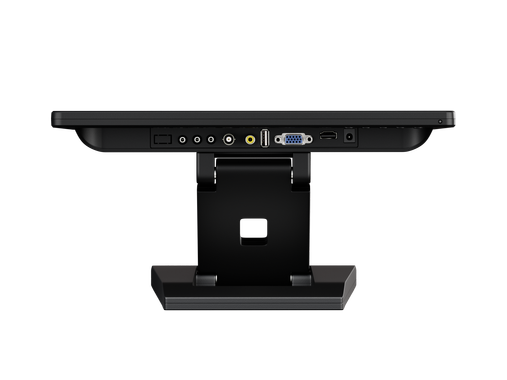

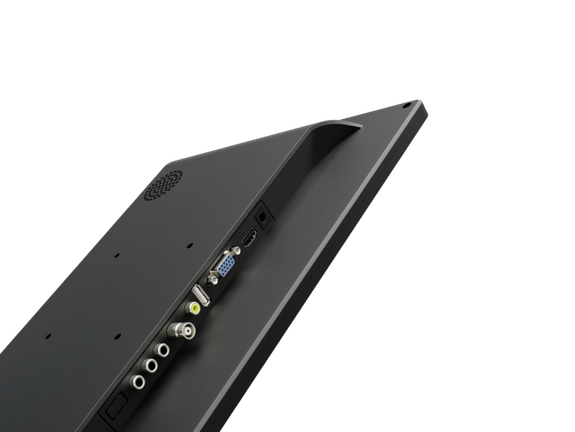

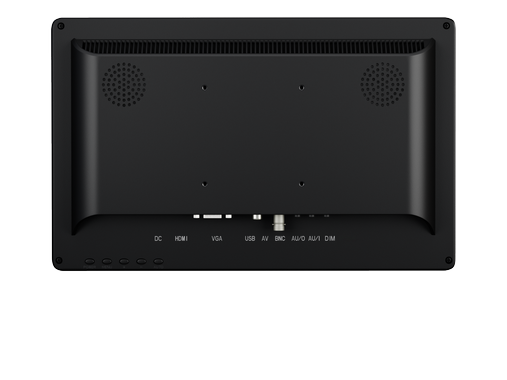

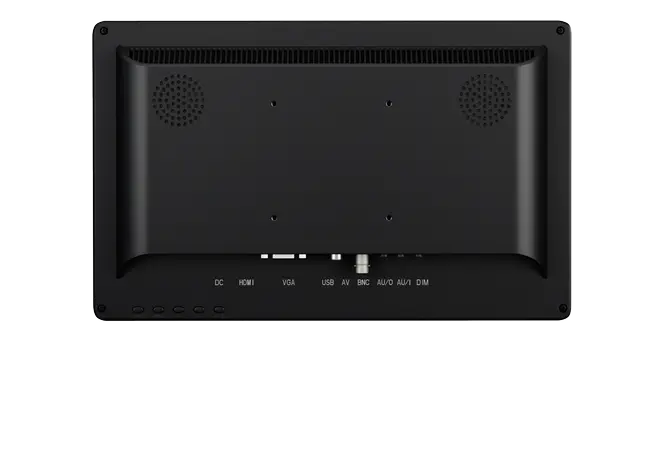

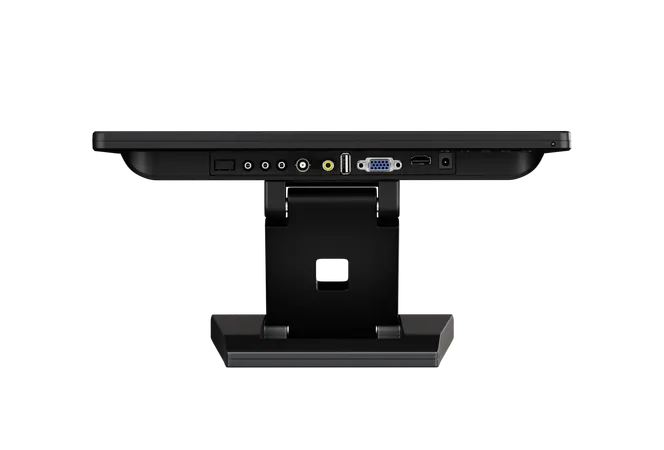

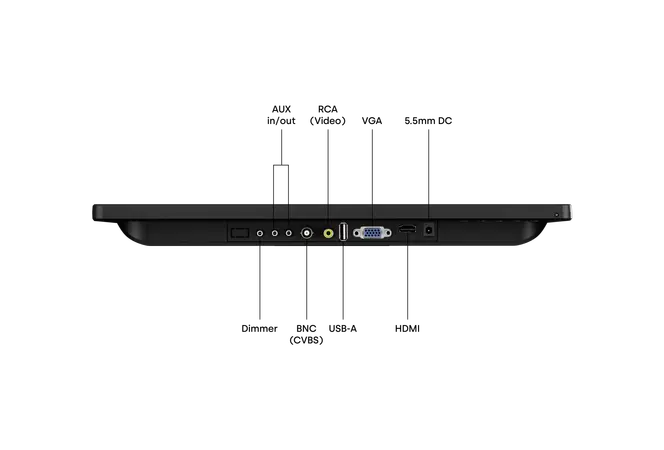

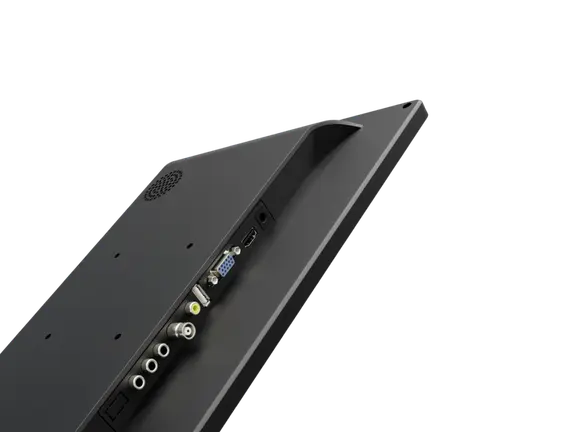

The Beetronics 13HD7 includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

13 Inch Monitor

Designed for Professional Use

The 13HD7 is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

Mounting Options

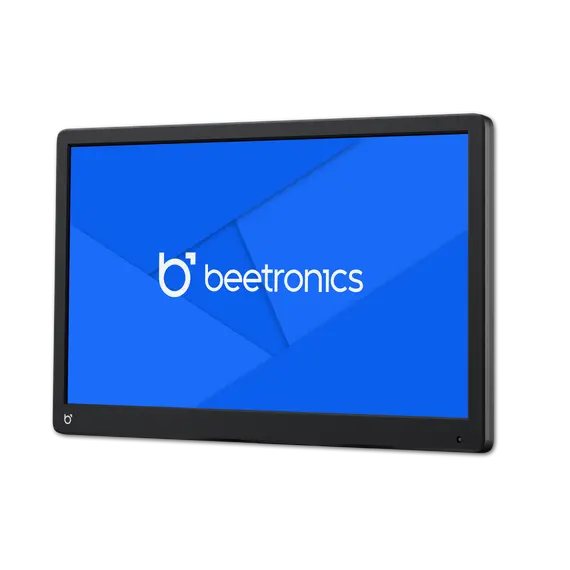

Wall Mount

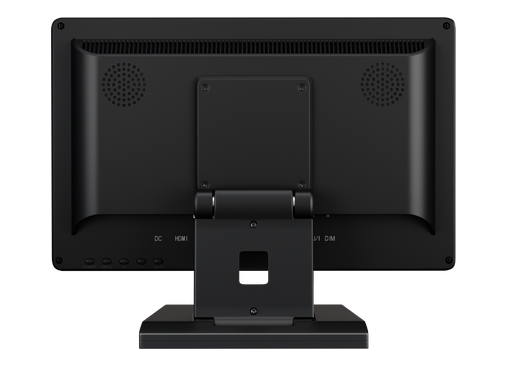

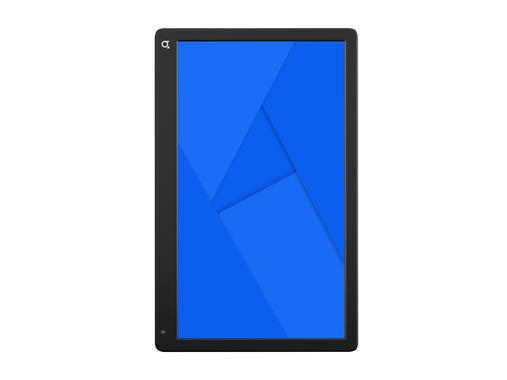

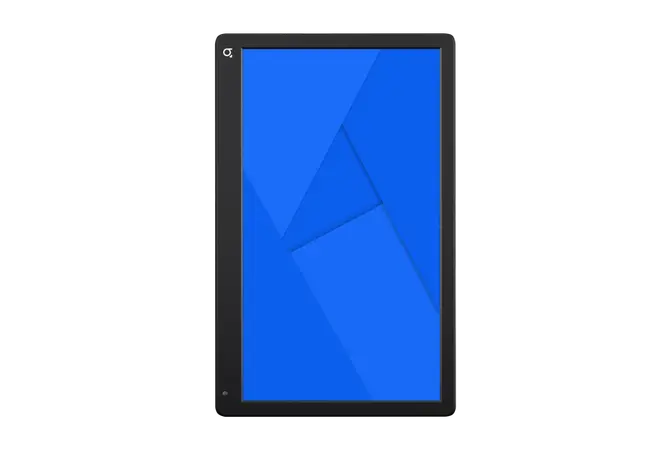

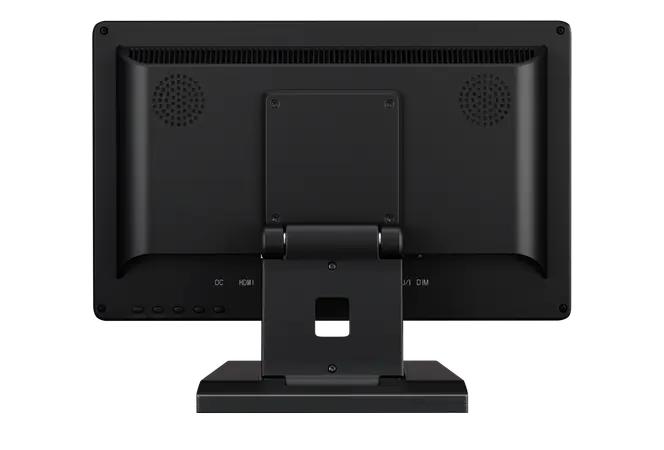

The included stand can be easily removed, giving you access to the universal 75mm VESA mount on the back of the monitor. This makes it possible to mount the monitor in either landscape or portrait orientation using a wide range of universal mounting options, such as monitor arms, wall brackets, ceiling mounts, or pole brackets.

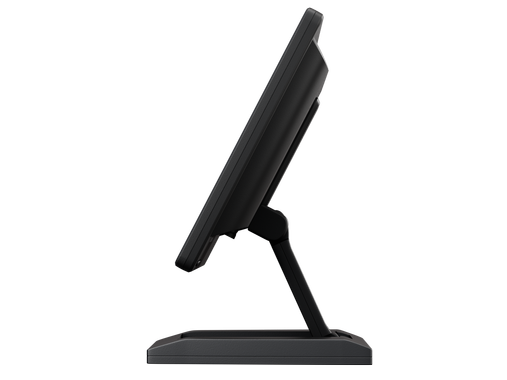

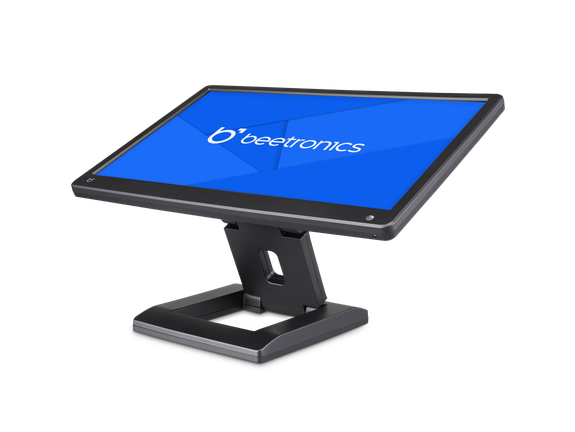

Stand

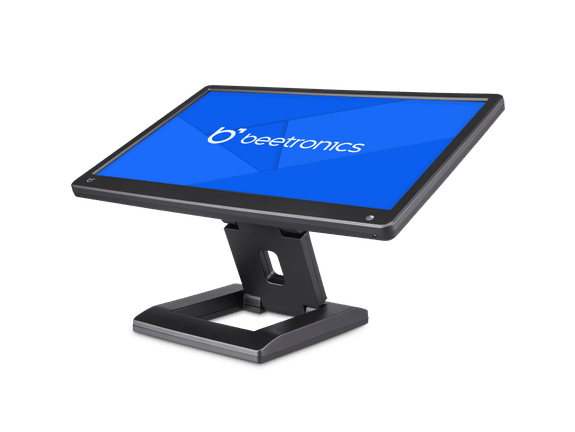

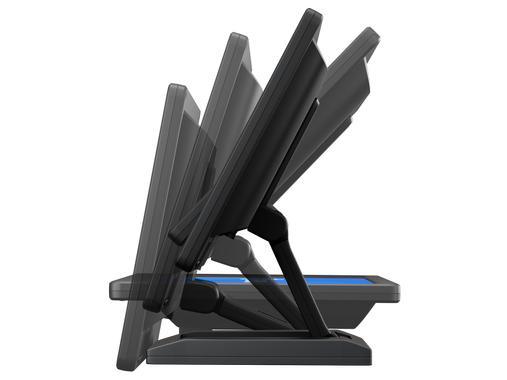

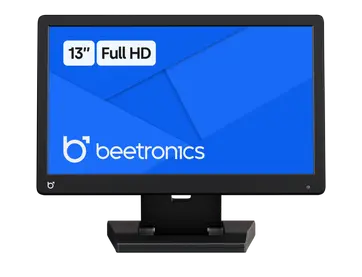

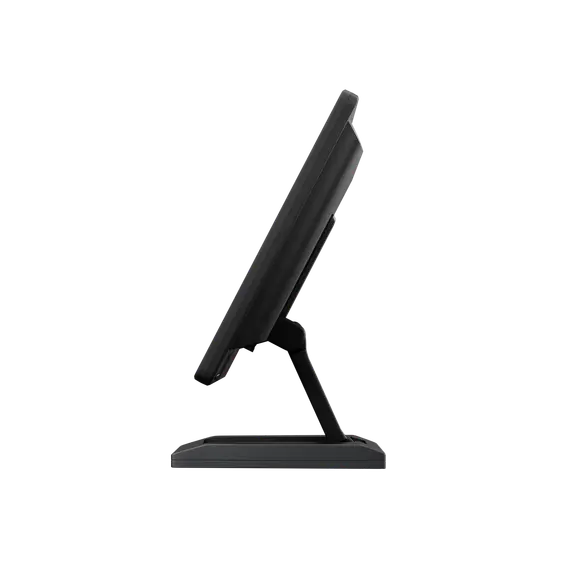

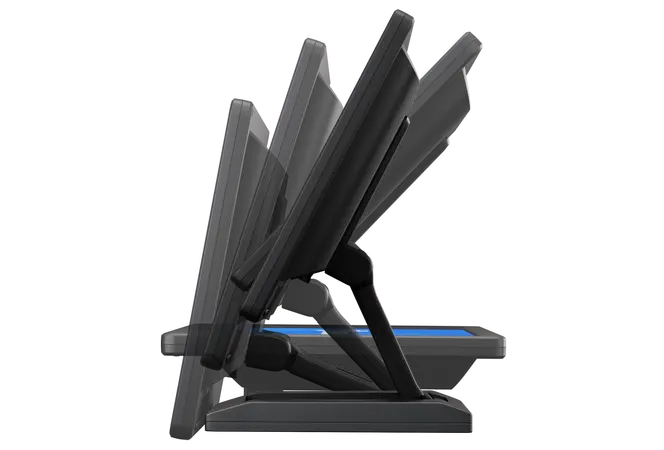

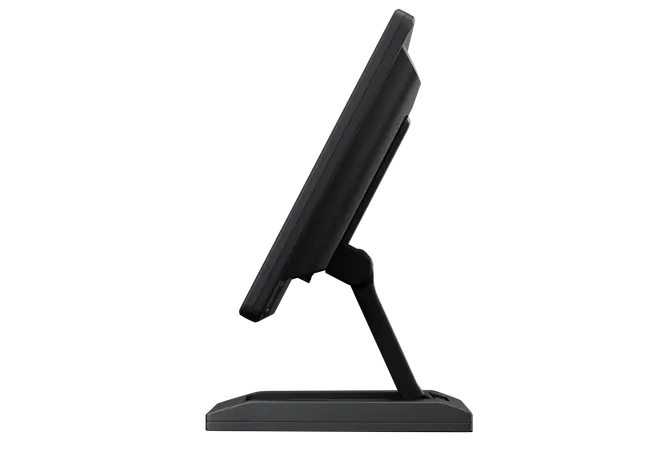

The monitor comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the monitor to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Item Number
13HD7
Product Name
13 Inch Monitor
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF
Panel
Diagonal Size
13.3 Inches (339 mm)
Panel Type
IPS-LCD
Aspect Ratio
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
Native Resolution
1920 x 1080
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels Per Inch
166 PPI
Backlight
LED
Brightness
300 cd/m2
Contrast
1400:1
Colour Encoding System
PAL/NTSC/SECAM
Viewing Angle
178° Horizontal, 178° Vertical
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA Video
1x
USB-A
1x Integrated USB Media Player
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
12.5 x 7.9 x 1.3 Inches
Image Size
11.6 x 6.6 Inches
Weight
1.3 lbs (2.2 lbs With Stand)
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation
Landscape, Portrait, Face-up
USB Media Player
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-36V
Consumption
12 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
10% - 90% Non-Condensing
Mounting
Wall Mount
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Compliance
Standards & Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, SAE J1113, EN50155, EN45545-2, EN60601-1 (requires PSU1-MED), EN60601-1-2 (requires PSU1-MED), CCC, CAN ICES-003(A)/NMB-003(A)

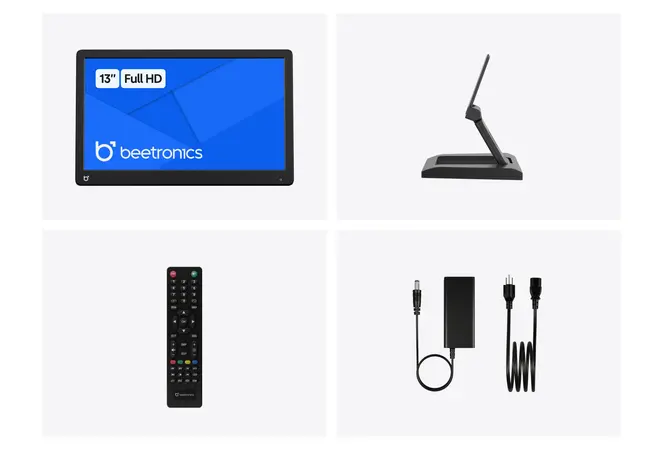

Package Content
Includes

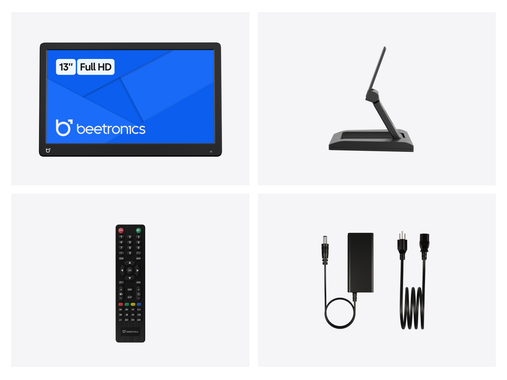

Monitor, Manual, Remote Control, AC Power Adapter, Stand
Compatible Accessories
Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
VDK4 Included as Standard
