15 Inch Monitor Metal SDI

Model: 15SDI7M
96 units in stock
Product Information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI (input & output), SDI (2x input & 2x output)
  3. Mounting: Flush, embedded, wall, desktop

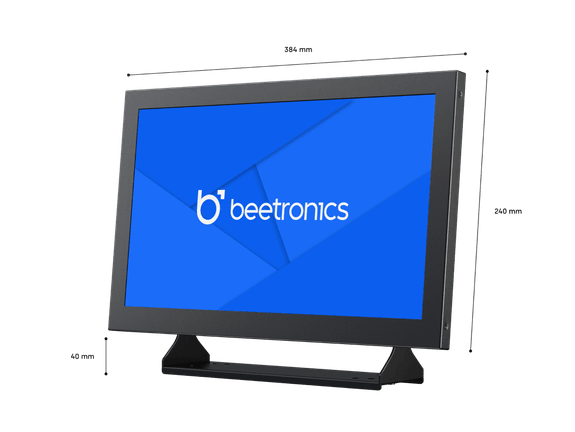

  4. External dimensions: 15.1 x 9.4 x 1.6 inches

This 15 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 15 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 15SDI7M can be easily connected to multiple HDMI, and SDI sources as well as daisy chained to other screens thanks to the inputs and outputs available.

CAD $1,249.00
Order now for next-business-day shipping
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.
Product Highlights
15 Inch Monitor Metal SDI

Outstanding Full HD Image Quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

15 Inch Monitor Metal SDI

Versatile Connectivity

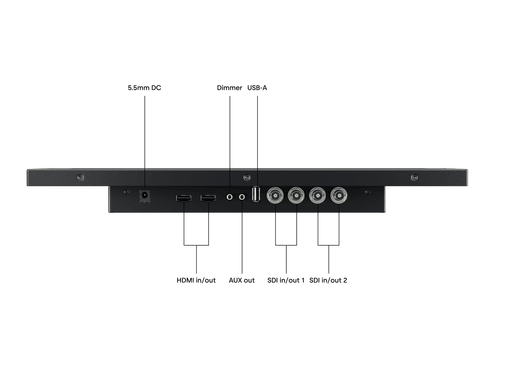

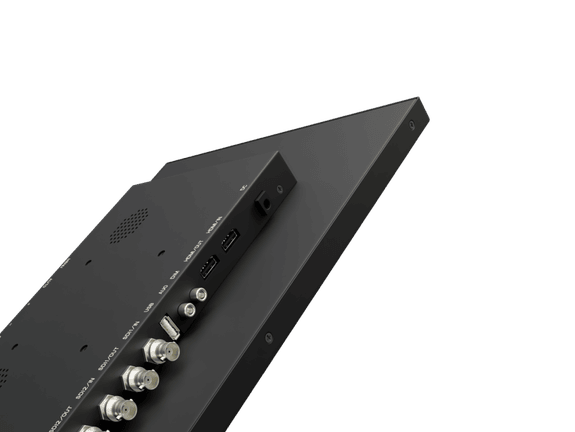

The 15SDI7M has an HDMI input and output and two SDI inputs and outputs. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

15 Inch Monitor Metal SDI

Designed for Professional Use

The 15SDI7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting Options
Flush-Mount

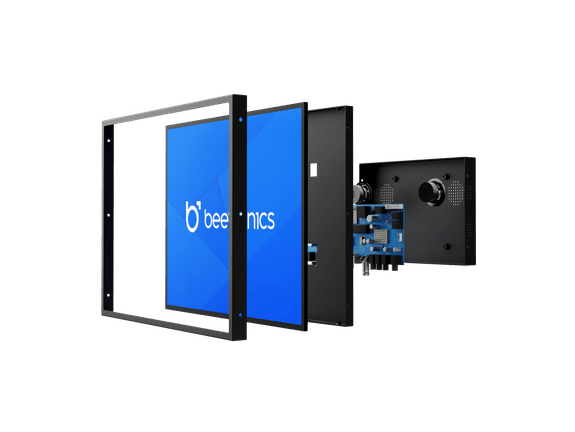

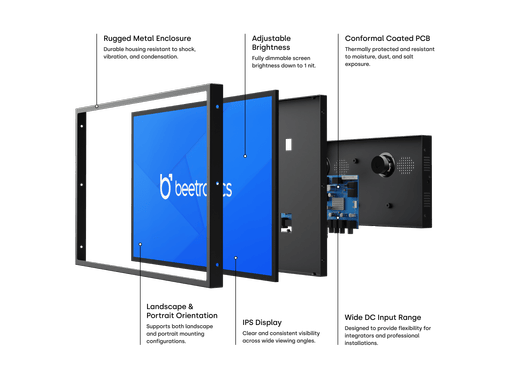

The monitor is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

The monitor includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

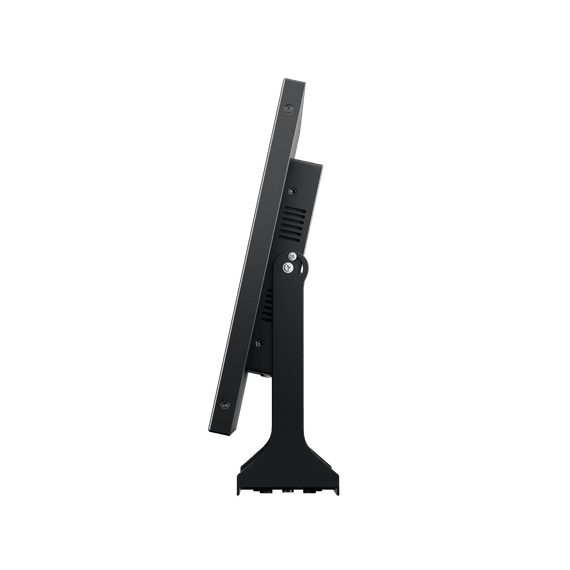

Stand

The monitor comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 75mm VESA mount. This allows the monitor to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
15SDI7M
Product Name
15 Inch Monitor Metal SDI
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF
Panel
Diagonal Size
15.6 Inches (396 mm)
Panel Type
IPS-LCD
Aspect Ratio
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
Native Resolution
1920 x 1080
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels Per Inch
146 PPI
Backlight
LED
Brightness
350 cd/m2
Contrast
700:1
Colour Encoding System
PAL/NTSC/SECAM
Viewing Angle
178° Horizontal, 178° Vertical
Connectivity
HDMI input
1x
HDMI output
1x
USB-A
1x Integrated USB Media Player
SDI input (3G)
2x
SDI output
2x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
15.1 x 9.4 x 1.6 Inches
Image Size
13.6 x 7.7 Inches
Weight
5.3 lbs (7.0 lbs With Stand)
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation
Landscape, Portrait, Face-up
USB Media Player
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-36V
Consumption
21 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
10% - 90% Non-Condensing
Mounting
Wall Mount
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Compliance
Standards & Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, CCC
Package Content
Includes
Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
