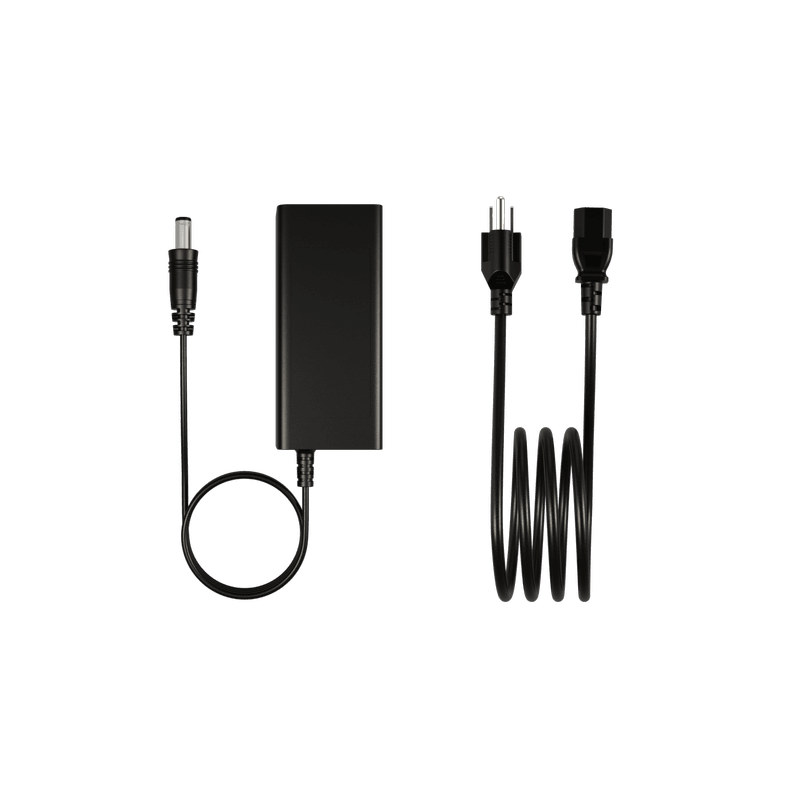

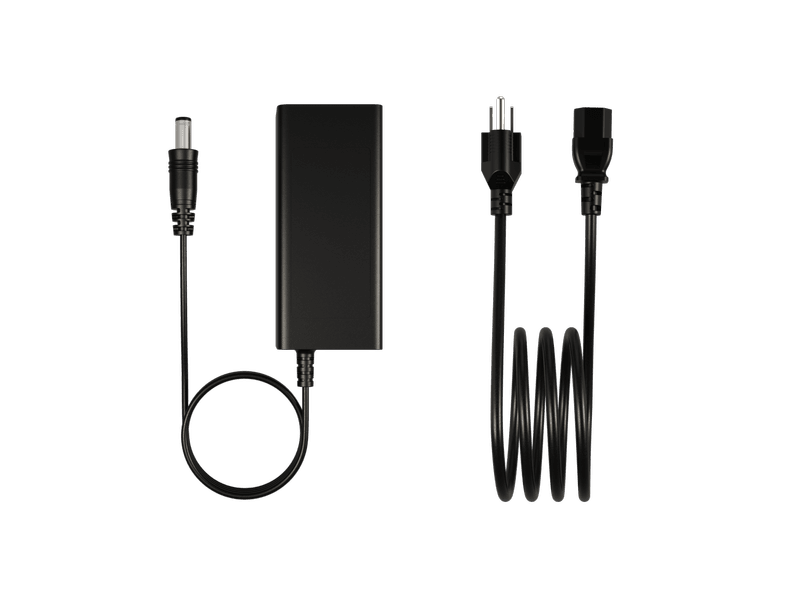

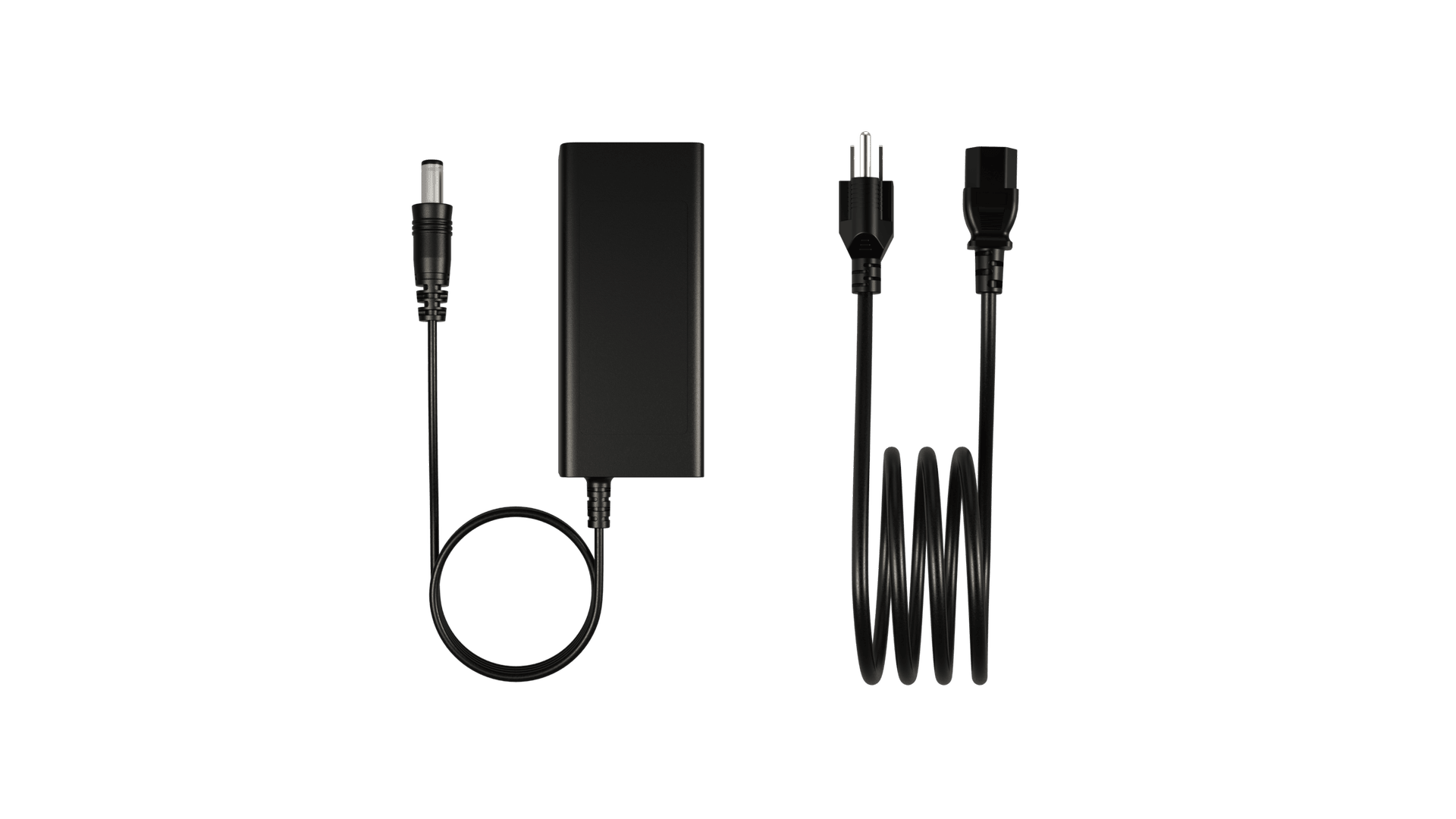

19V External Power Adapter
Product Information
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 19V ⎓ 2.5A, 47.5W
- DC Plug Size: 5.5 mm
- Cable Length: 8.2 Feet
CAD $19.00
Order now for next-business-day shipping
The PSU1-US is a reliable external power adapter designed for professional applications and continuous use. This adapter accepts a wide input range of 100-240V AC at 50/60Hz and is equipped with a 2-pin US plug, making it suitable for any standard US wall socket.
With a cable length of 8.2 feet, the PSU1-US delivers a stable output of 19V ⎓ 2.5A (47.5W) via a 5.5 mm DC plug. This power supply is compatible with all Beetronics monitors and touchscreens, with the exception of the high-brightness models.
Specifications
General
Manufacturer
Beetronics
Item Number
PSU1-US
Product Name
19V External Power Adapter
Warranty
2 Years
Datasheet
Size & Weight
Colour
Black
0.7 lbs
Technical Drawing (2D)
Technical Drawing (3D)
Cable length
8.2 Feet (AC: 3.3 Feet / DC: 4.9 Feet)
Power
Inner diameter
0.1 inches
Outer diameter
0.2 inches
Connector type
US
Voltage
19 Volt
Amperage
2.5 Ampere
Polarity
- outside / + inside
Compliance
Standards & Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA
Package Content
Includes
Power Supply
Compatibility
Compatible with
7HD7M, 8VG7M, 8HD7M, 9HD7M, 10HD7, 10VG7M, 10HD7M, 12HD7, 12VG7M, 12HD7M, 12SDI7M, 13HD7, 13HD7M, 15HD7, 15VG7M, 15HD7M, 15SDI7M, 17HD7M, 17VG7M, 19VG7M, 19HD7M, 22HD7M, 22SDI7M, 24HD7M, 27HD7M, 32HD7M, 7TS7M, 8TSV7M, 10TS7, 10TSV7M, 10TS7M, 12TS7, 12TSV7M, 12TS7M, 13TS7, 13TS7M, 15TS7, 15TSV7M, 15TS7M, 17TSV7M, 17TS7M, 19TSV7M, 19TS7M, 22TS7M, 24TS7M, 27TS7M, 32TS7M
Downloads
Download Technical Documentation
