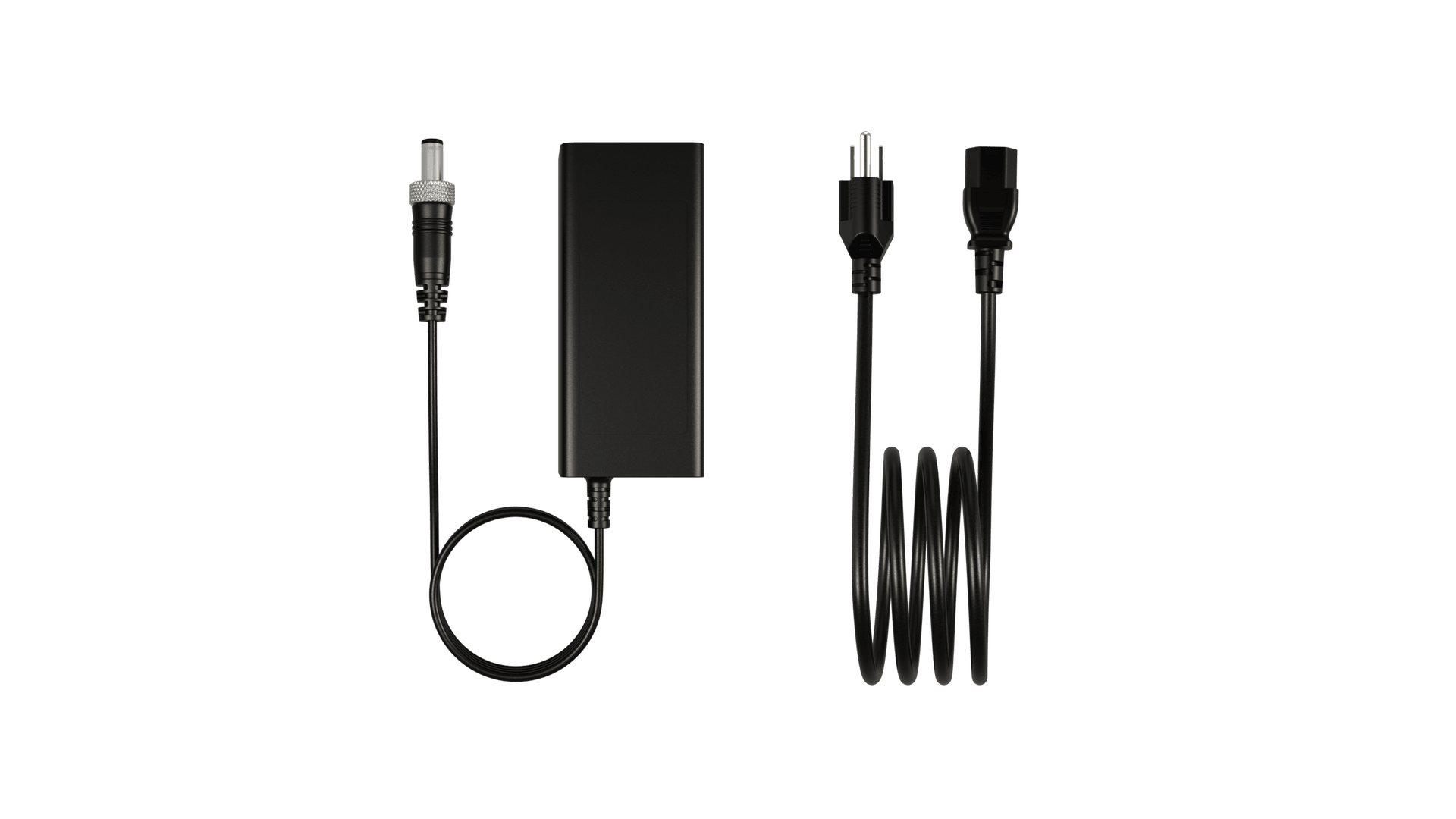

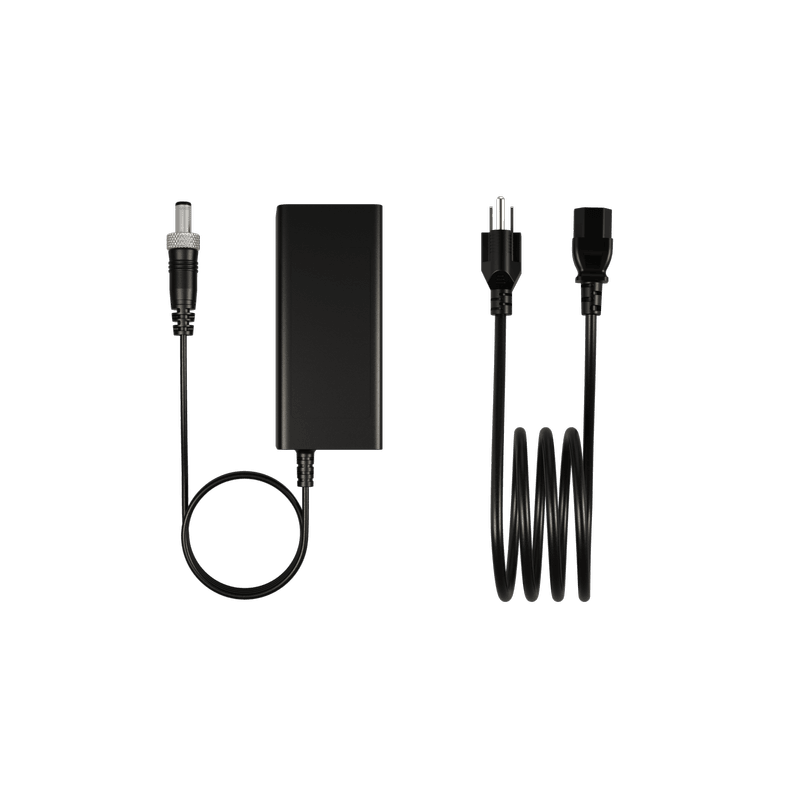

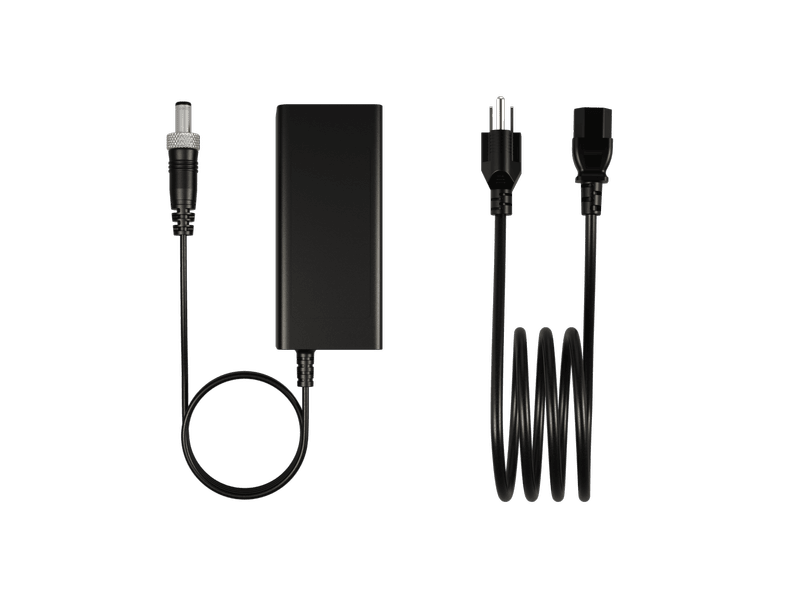

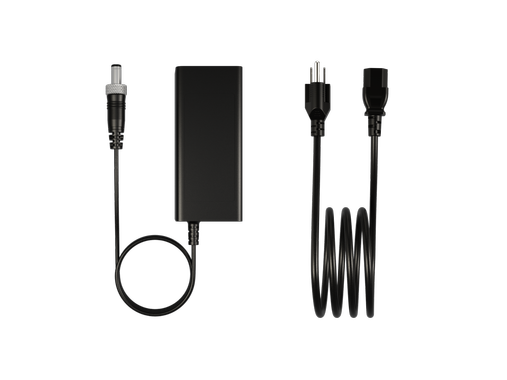

19V External Power Adapter With Lock
Product Information
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 19V ⎓ 2.5A, 47.5W
- DC Plug Size: 5.5 mm
- Cable Length: 8.2 Feet
CAD $19.00
Order now for next-business-day shipping
The PSU1-LOCK-US is a reliable external power adapter designed for professional applications and continuous use. This adapter accepts a wide input range of 100-240V AC at 50/60Hz and is equipped with a 2-pin US plug, making it suitable for any standard US wall socket.
With a cable length of 8.2 feet, the PSU1-LOCK-US delivers a stable output of 19V ⎓ 2.5A (47.5W) via a 5.5 mm DC plug. This power supply is compatible with all Beetronics high-brightness displays.
Specifications
General
Manufacturer
Beetronics
Item Number
PSU1-LOCK-US
Product Name
19V External Power Adapter With Lock
Warranty
2 Years
Datasheet
Size & Weight
Colour
Black
0.7 lbs
Technical Drawing (2D)
Technical Drawing (3D)
Cable length
8.2 Feet (AC: 3.3 Feet / DC: 4.9 Feet)
Power
Inner diameter
0.1 inches
Outer diameter
0.2 inches
Connector type
US
Voltage
19 Volt
Amperage
2.5 Ampere
Polarity
- outside / + inside
Compliance
Standards & Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA
Package Content
Includes
Power Supply
Compatibility
Compatible with
10HB9M/U1, 12HB9M/U1, 15HB9M/U1, 17HB9M/U1, 19HB9M/U1, 22HB9M/U1, 24HB9M/U1, 27HB9M/U1
Downloads
Download Technical Documentation
