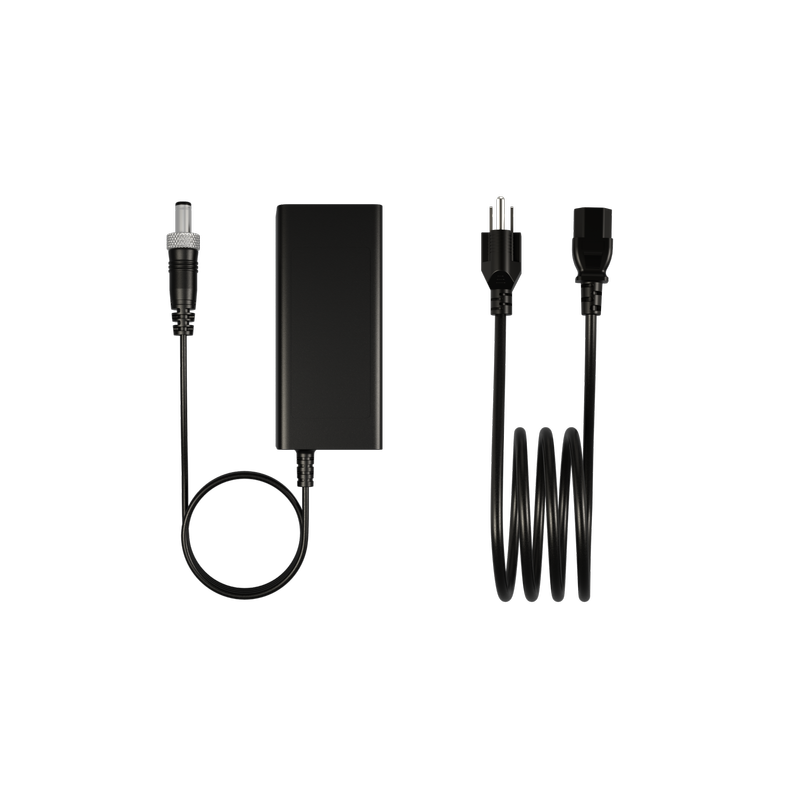

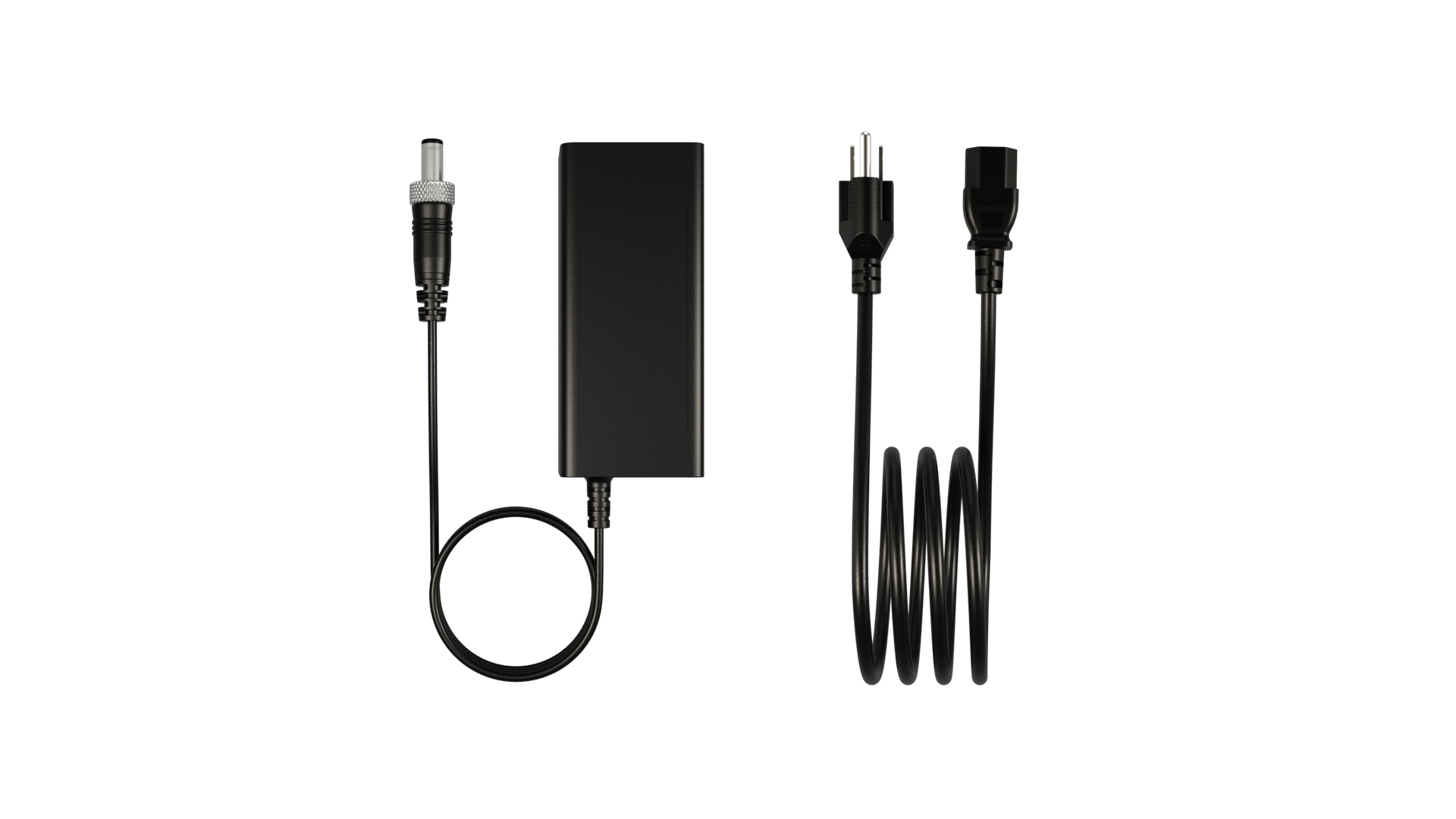

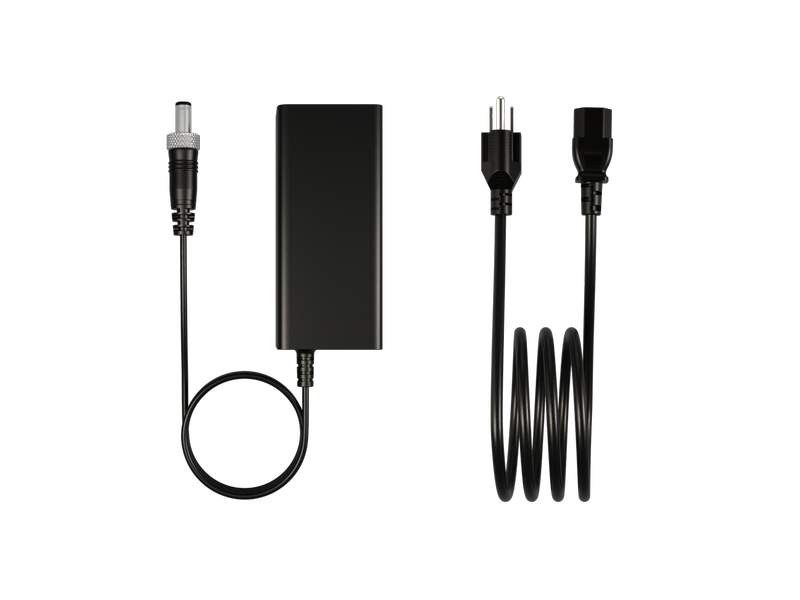

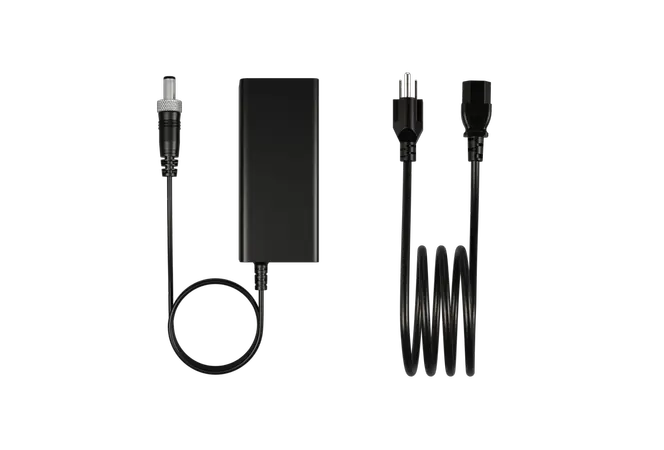

19V External Power Adapter With Lock, US Plug
Product Information
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 19V ⎓ 2.5A, 47.5W
- DC Plug Size: 5.5 mm x 2.1 mm
- Cable Length: 8.2 Feet
The PSU1-LOCK-US is a reliable external power adapter designed for professional applications and continuous use. This adapter accepts a wide input range of 100-240V AC at 50/60Hz and is equipped with a 3-pin US plug, making it suitable for any standard US wall socket.
With a cable length of 8.2 feet, the PSU1-LOCK-US delivers a stable output of 19V ⎓ 2.5A (47.5W) via a 5.5 mm DC plug. This power supply is compatible with all Beetronics high-brightness displays.
CAD $19.00
Specifications
General
- Manufacturer
- Beetronics
- Product Name
- 19V External Power Adapter With Lock, US Plug
- Item Number
- PSU1-LOCK-US
- Warranty
- 2 Years
- Datasheet
- Download PDF
Mechanical
- Weight
- 0.7 lbs
- Colour
- Black
- Cable length
- 8.2 Feet (AC: 3.3 Feet / DC: 4.9 Feet)
- Technical Drawing (2D)
- Download PDF
- Technical Drawing (3D)
- Download CAD/STP
Power
- Inner diameter
- 2.1 mm
- Outer diameter
- 5.5 mm
- Connector type
- US
- Voltage
- 19 Volt
- Amperage
- 2.5 Ampere
- Polarity
- - outside / + inside
Package Content
- Includes
- Power Supply
Compatibility
- Compatible with
- 10HB9M/U1, 12HB9M/U1, 15HB9M/U1, 17HB9M/U1, 19HB9M/U1, 22HB9M/U1, 24HB9M/U1, 27HB9M/U1
Downloads
Download Technical Documentation
