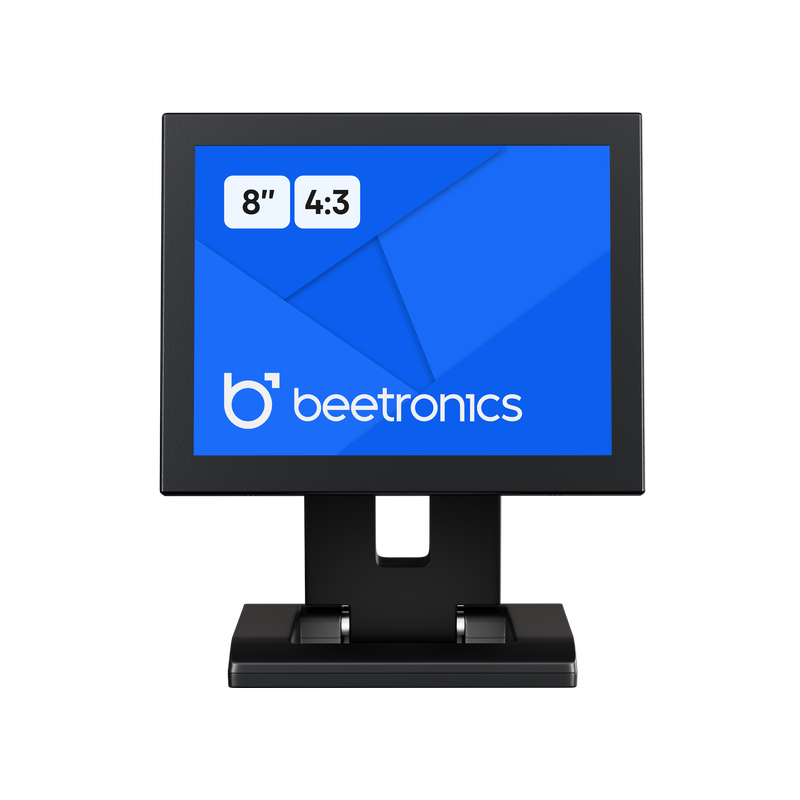

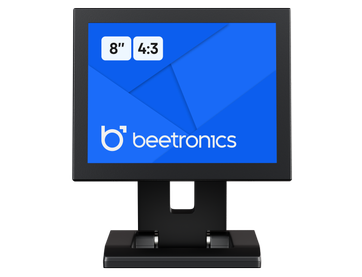

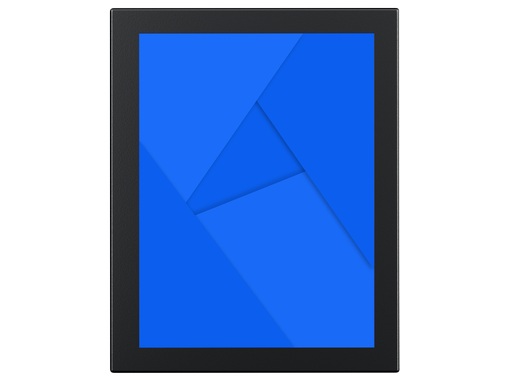

8 Inch Monitor Metal (4:3)
Model: 8VG7M
22 units in stock
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)
8 Inch Monitor Metal (4:3)

8 Inch Monitor Metal (4:3)

Model: 8VG7M
22 units in stock
  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 7.4 x 5.9 x 1.5 inches
  5. More specifications
Display Type
Order by 11.00 p.m. for Delivery on Friday
  • Description
  • Specifications
  • Connectivity
  • Downloads

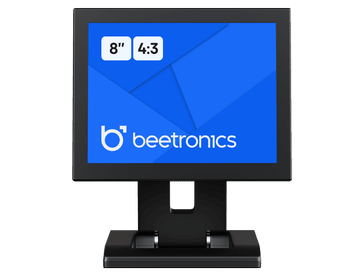

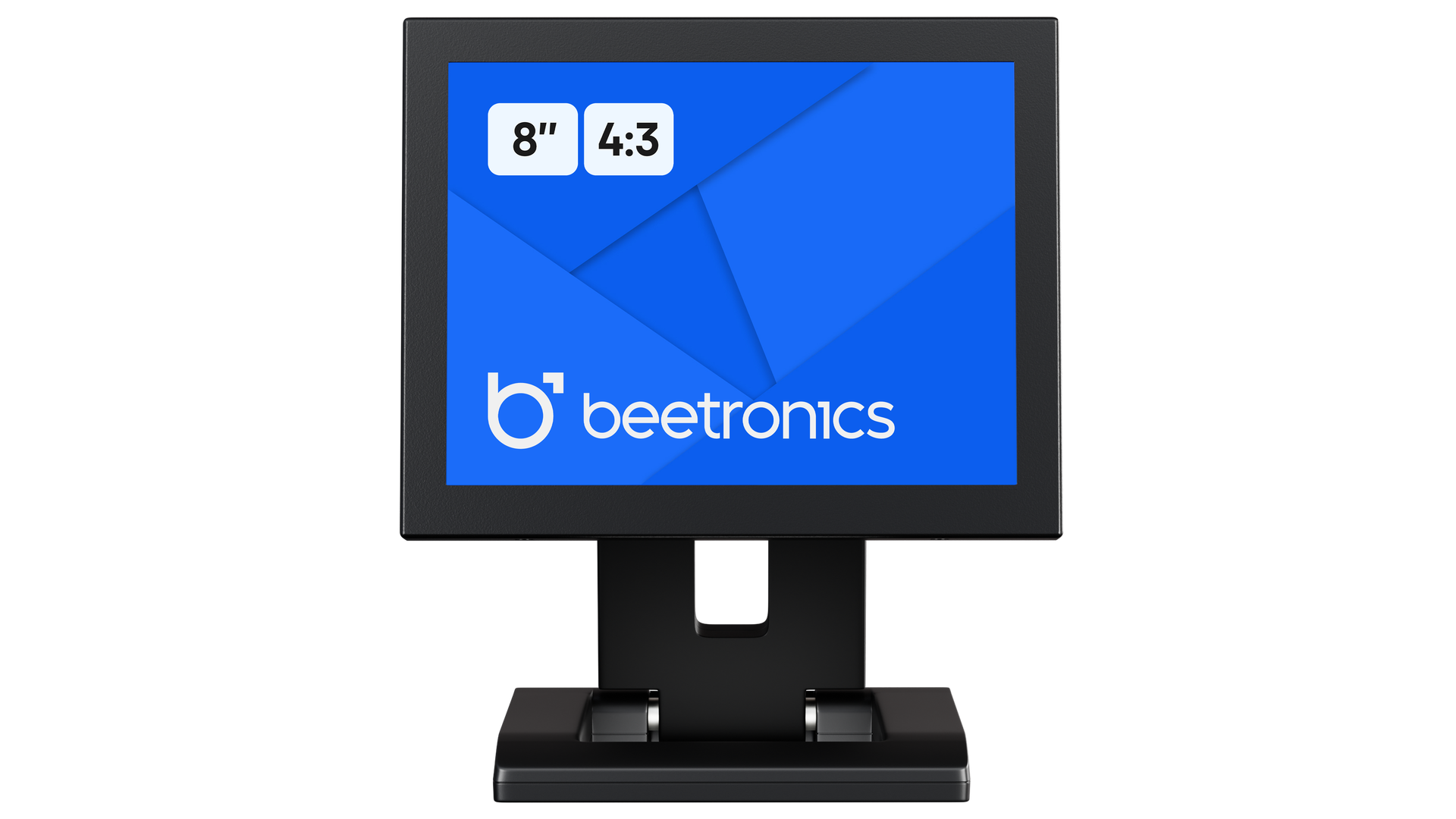

This 8 inch monitor has a matte IPS panel with a 4:3 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 8 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.

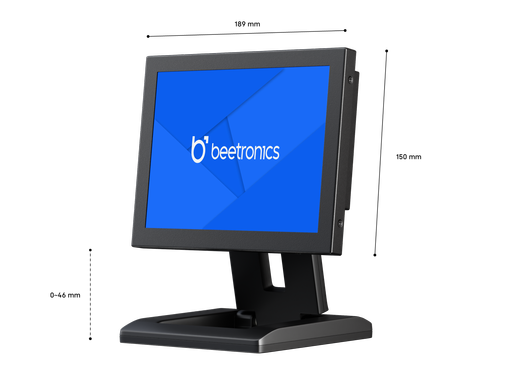

4:3 Aspect Ratio

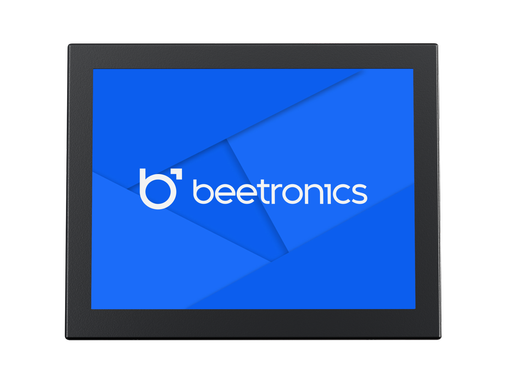

This 8 inch monitor is equipped with a 4:3 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, color and brightness are all very easy to adjust. The monitor is designed to display 4:3 ratio resolutions and is able to scale any resolution up to 1080p.

8 Inch Monitor Metal (4:3)

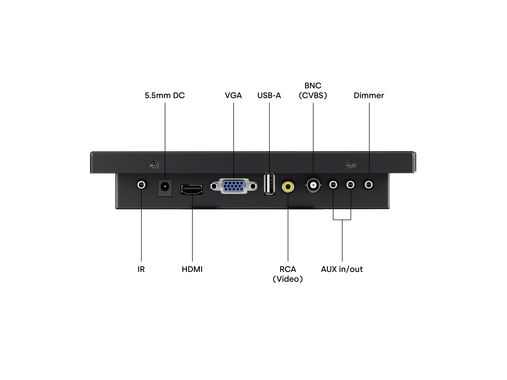

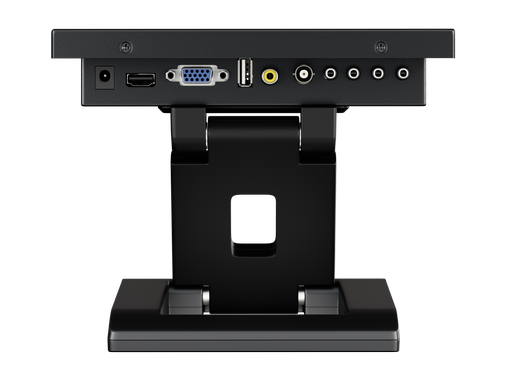

Versatile Connectivity

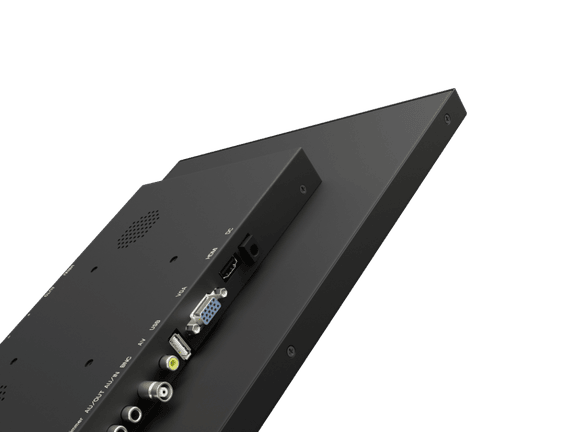

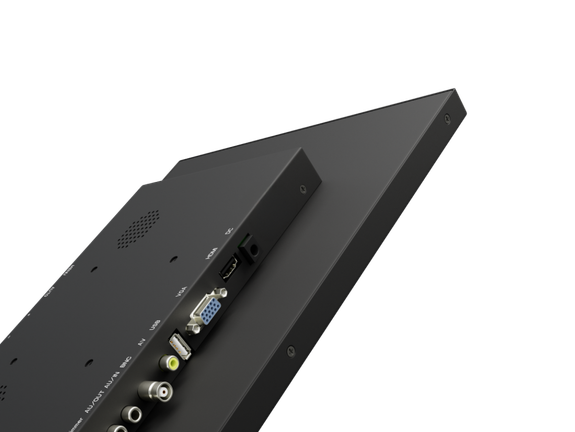

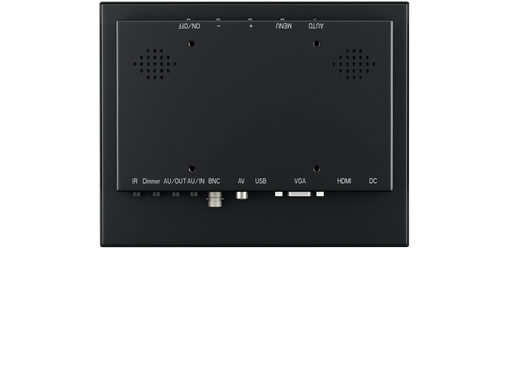

The Beetronics 8VG7M  features HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on or off when it detects current or a video signal.

8 Inch Monitor Metal (4:3)

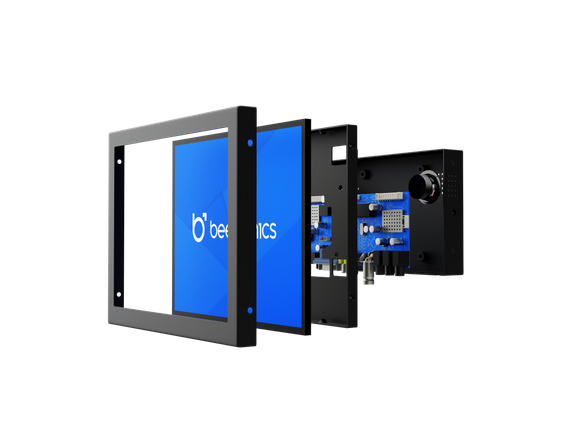

Designed for Professional Use

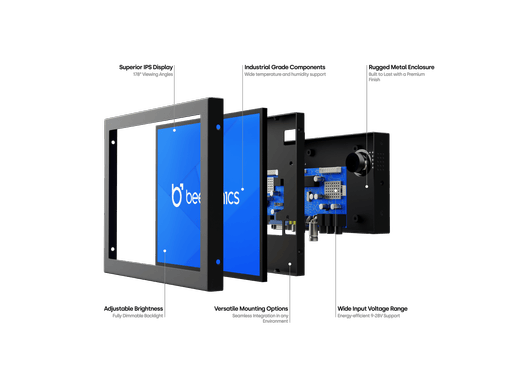

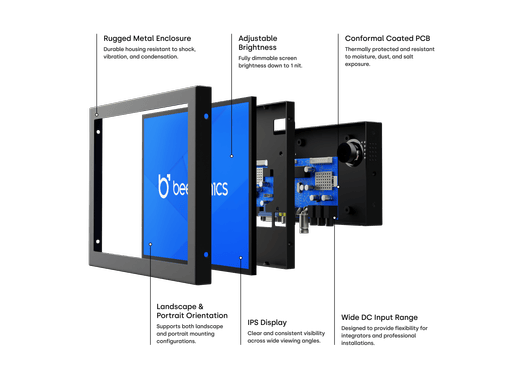

The 8VG7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

8 Inch Monitor Metal (4:3)

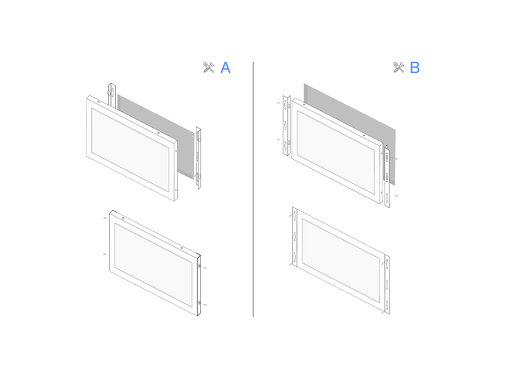

Easily Integrated

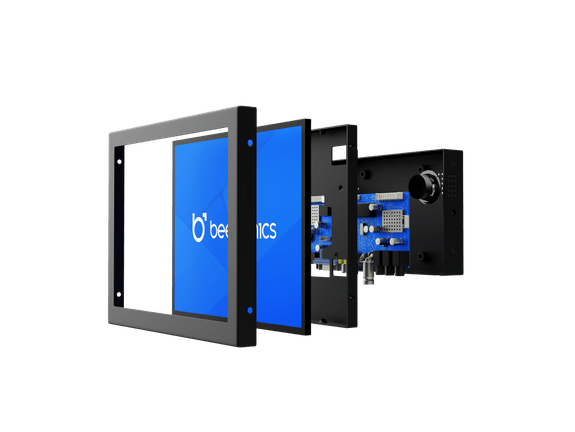

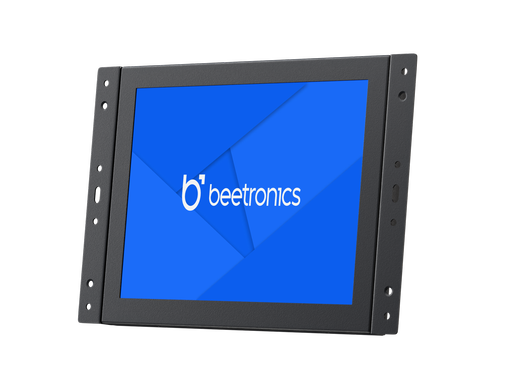

Thanks to numerous mounting options, the 8 inch metal monitor can be seamlessly integrated into any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to embed the monitor in any environment.

8 Inch Monitor Metal (4:3)

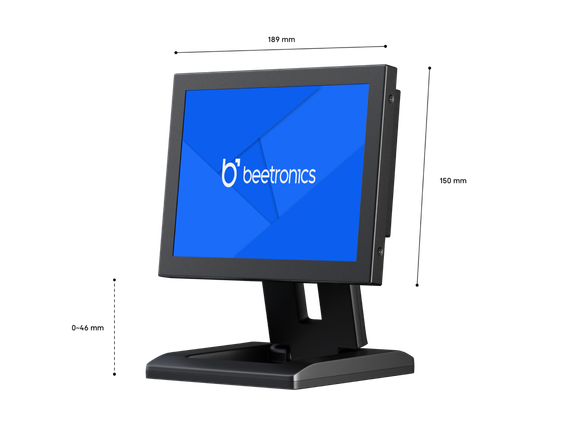

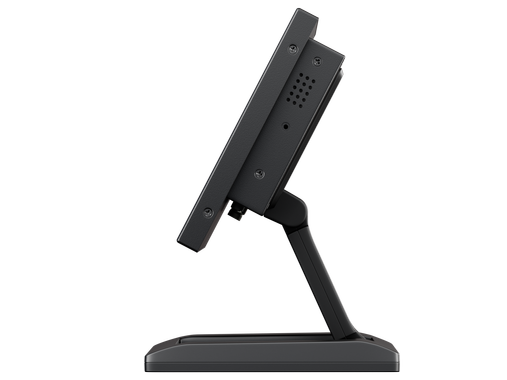

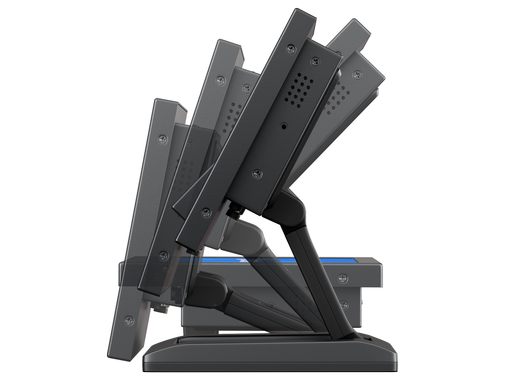

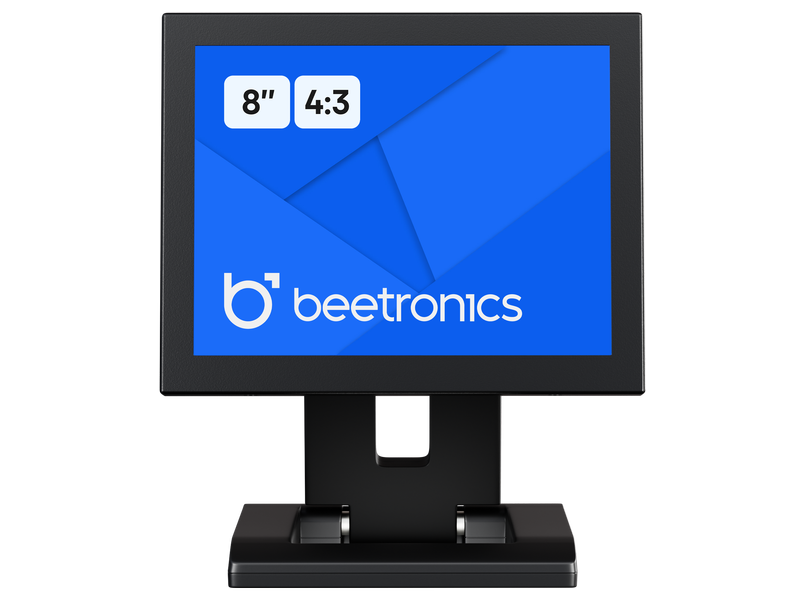

Desktop or Wall Mounting

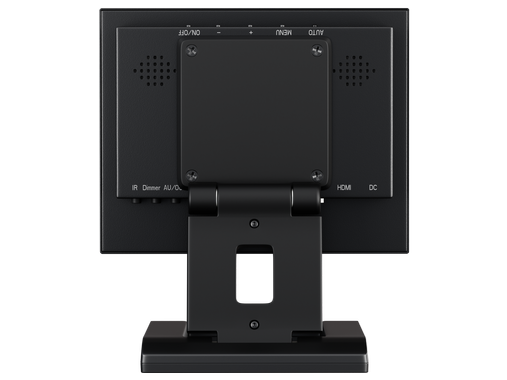

The Beetronics 8VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.

8 Inch Monitor Metal (4:3)
General
Manufacturer
Beetronics
Item Number
8VG7M
Previous Model
8VG3
Product Name
8 Inch Monitor Metal (4:3)
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
Diagonal Size
8.0 Inches (205 mm)
Panel Type
IPS-LCD
Response Time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
350 cd/m2
Contrast
800:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
HDMI
1x
VGA
1x
RCA Video
1x
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
7.4 x 5.9 x 1.5 Inches
Image Size
6.5 x 4.8 Inches
Weight
1.8 lbs (2.6 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Auto-On
Automatically powers on when it receives current or a signal.
Orientation
Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-33V
Consumption
Typical 8.4 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC
Package Content
Includes

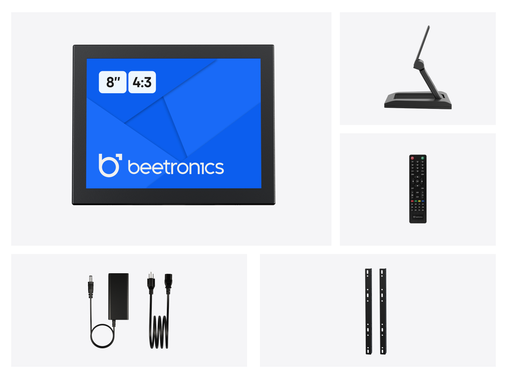

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
Compatible Accessories
Infrared Extension
Compatible With Infrared Extender (IRC7)
Dimmer
Compatible With External Dimmer (DMK7/DMK8)
Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
VDK3 Included as Standard
8 Inch Monitor Metal (4:3)
Downloads
User Manual
Quickstart
Technical Drawing
3D Drawing
Datasheet
