12 Inch Touchscreen
Model: 12TS7
100+ units in stock
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen
12 Inch Touchscreen

12 Inch Touchscreen

Model: 12TS7
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop
  4. External dimensions: 11.2 x 7.0 x 1.1 inches
  5. More specifications
Display Type
Monitor
Touchscreen
Order by 11.00 p.m. for Delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

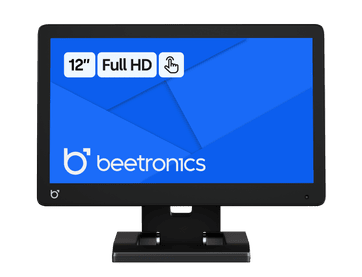

This Full HD 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS7 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications and suitable for intensive use.

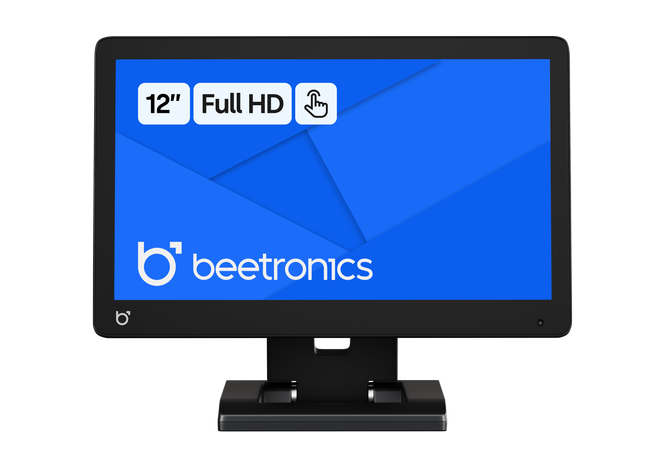

Full HD Multi-Touch Panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 12TS7 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

12 Inch Touchscreen

Compatible With Windows,
macOS, ChromeOS and Linux

The 12 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

12 Inch Touchscreen

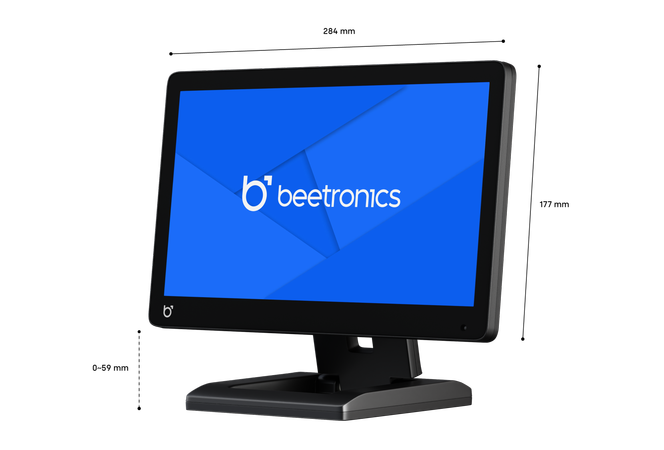

Designed for Professional Use

The 12TS7 is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

12 Inch Touchscreen

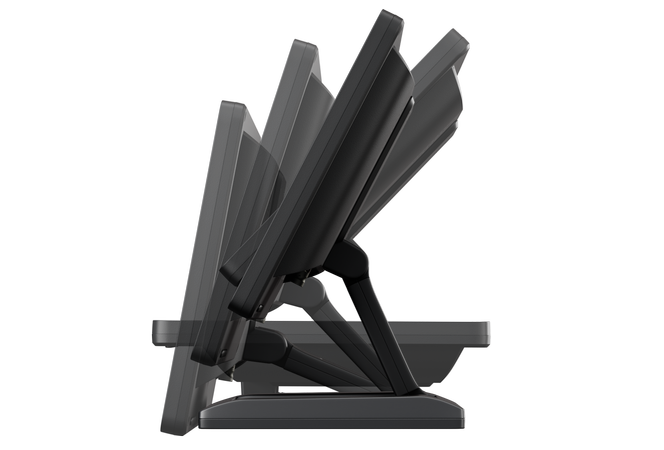

Desktop and Wall Mountable

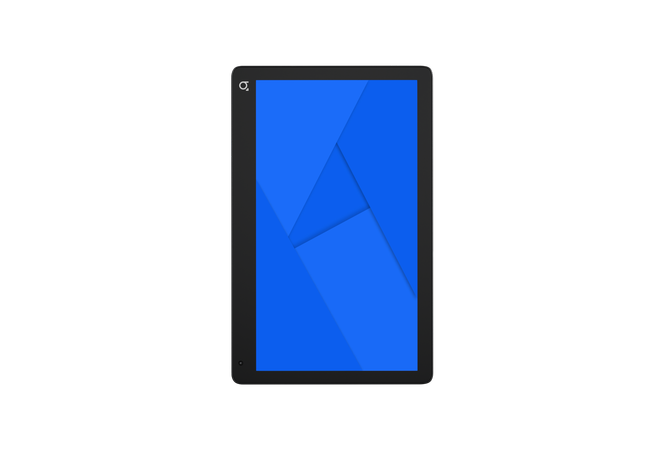

The Beetronics 12TS7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

12 Inch Touchscreen
General
Manufacturer
Beetronics
Item Number
12TS7
Product Name
12 Inch Touchscreen
Warranty
2 Years
Datasheet
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Panel
Diagonal Size
11.6 Inches (297 mm)
Panel Type
IPS-LCD
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
500 cd/m2
Contrast
1000:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Surface
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Touch Control
Stylus, Hand, Glove

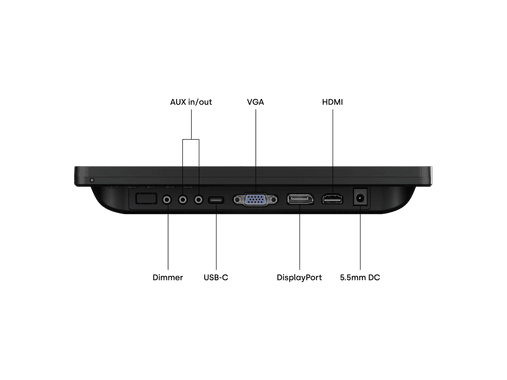

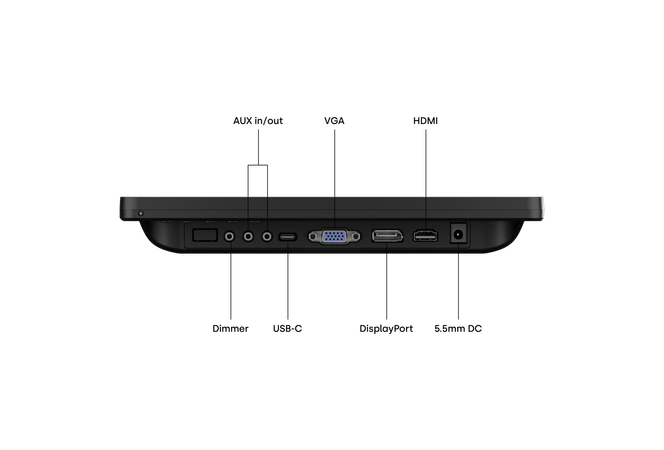

Connectivity
HDMI
1x
VGA
1x
RCA Video
1x
Only for Touchscreen Functionality
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black

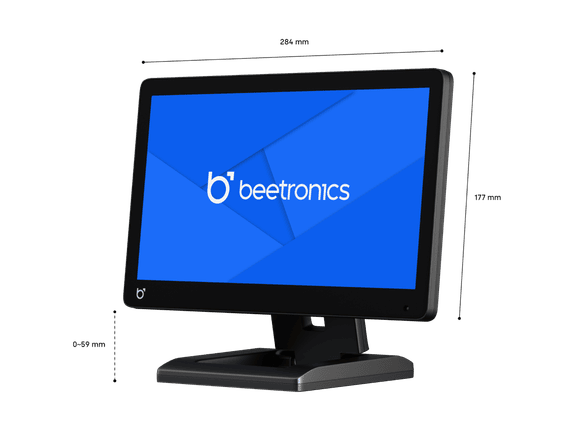

Dimensions (Without Stand)
11.2 x 7.0 x 1.1 Inches
Active Area
10.2 x 5.6 Inches
Weight
1.5 lbs (2.4 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-33V
Consumption
Typical 10.2 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
Impact Protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

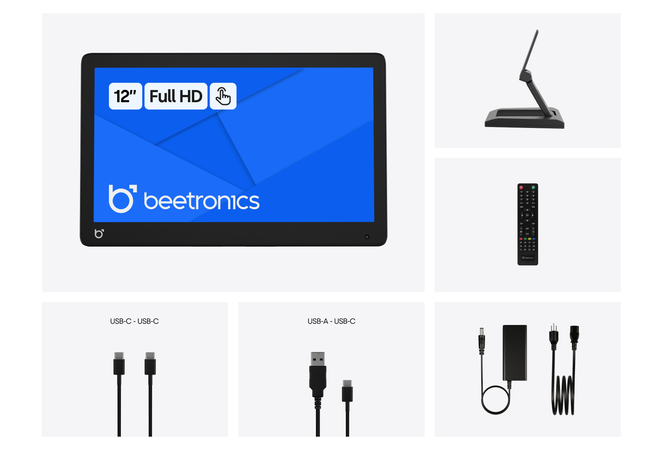

Package Content
Includes
Touchscreen, AC Power Adapter, Remote Control, USB Cable, Stand, Manual
Compatible Accessories
Infrared Extension
Compatible With Infrared Extender (IRC7)
Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
VDK3 Included as Standard
Touch Pen
Compatible with CTS7 capacitive touchscreen stylus
12 Inch Touchscreen
Downloads
User Manual
Quickstart
Technical Drawing
3D Drawing
Datasheet
Product name Model In Stock Quantity Price
12 Inch Touchscreen
12 Inch Touchscreen CAD $595.00
12TS7
CAD $595.00
Wall Mount Bracket, Flat
VWB1
CAD $35.00
Capacitive Touchscreen Stylus
CTS7
CAD $15.00
HDMI Cable - 6 Feet
HDMI Cable - 6 Feet CAD $19.00
KHD2
CAD $19.00
  • Description
  • Specifications
  • Connectivity
  • Downloads
12 Inch Touchscreen
CAD $595.00
