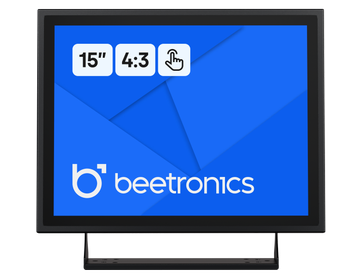

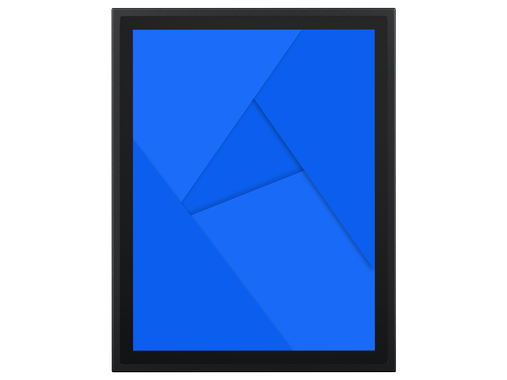

15 Inch Touchscreen Metal (4:3)
Model: 15TSV7M
Expected delivery in 12 business days
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3)

15 Inch Touchscreen Metal (4:3)

Model: 15TSV7M
Expected delivery in 12 business days
  1. 4:3 multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 13.6 x 10.5 x 1.8 inches
  5. More specifications
Display Type
Monitor
Touchscreen
Expected delivery in 12 business days
  • Description
  • Specifications
  • Connectivity
  • Downloads

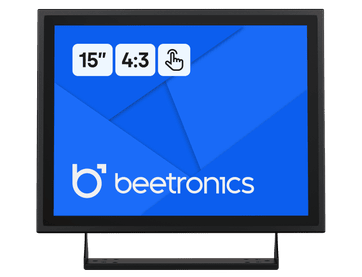

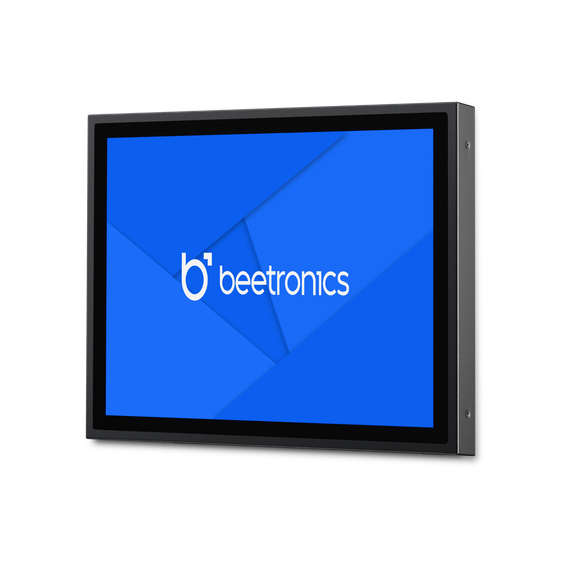

This 15 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

4:3 multi-touch panel

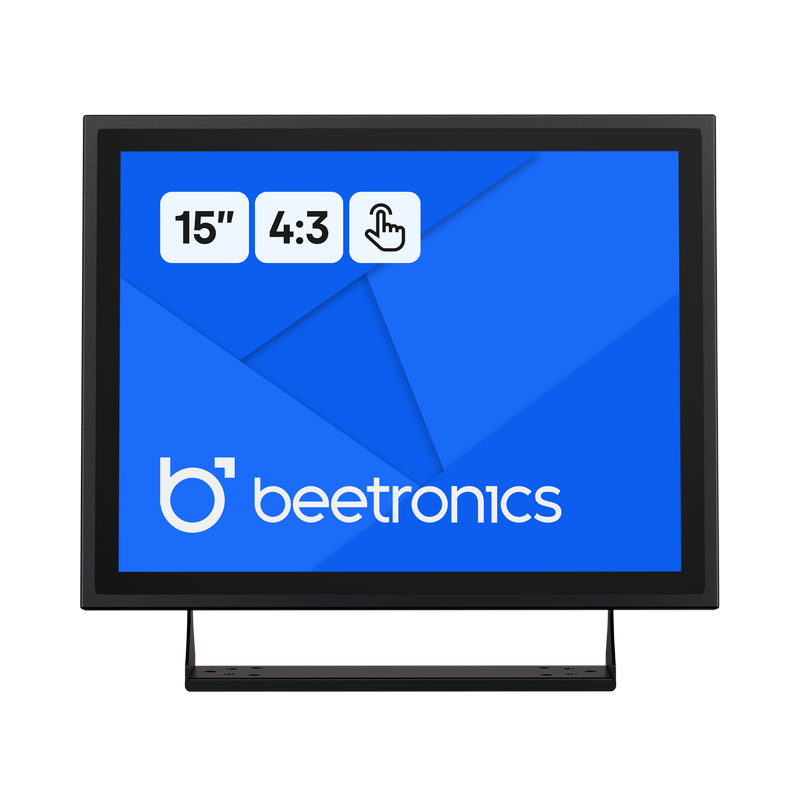

This 15 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 15TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

15 Inch Touchscreen Metal (4:3)

Compatible with Windows,
macOS, ChromeOS and Linux

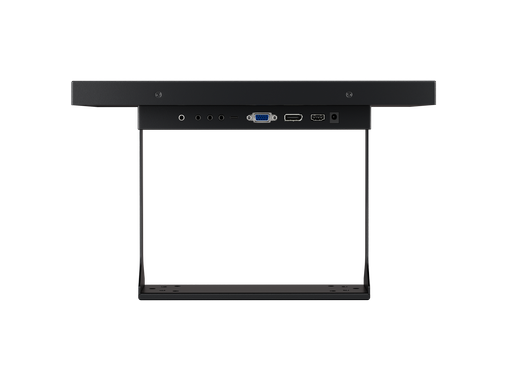

The 15-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

15 Inch Touchscreen Metal (4:3)

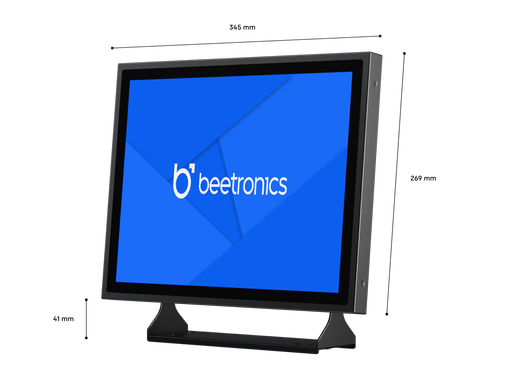

Designed for professional use

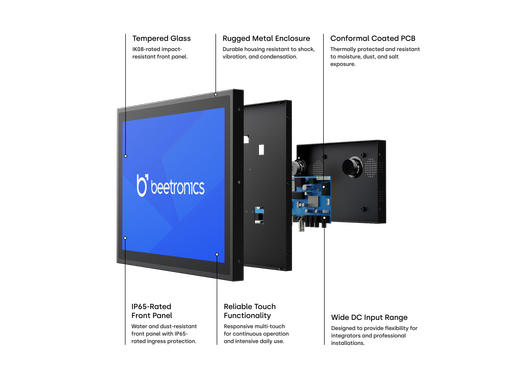

The 15TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9-33 Volts and features a fully dimmable backlight.

15 Inch Touchscreen Metal (4:3)

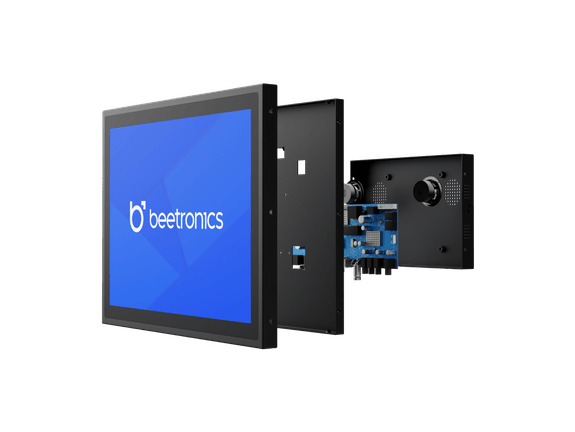

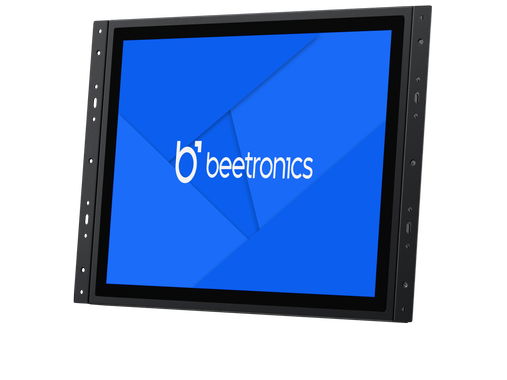

Easily integrated

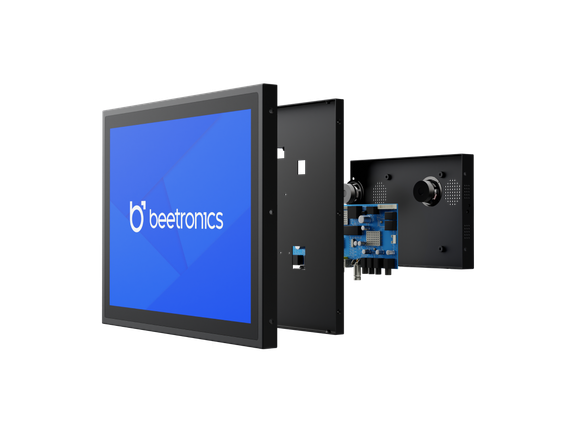

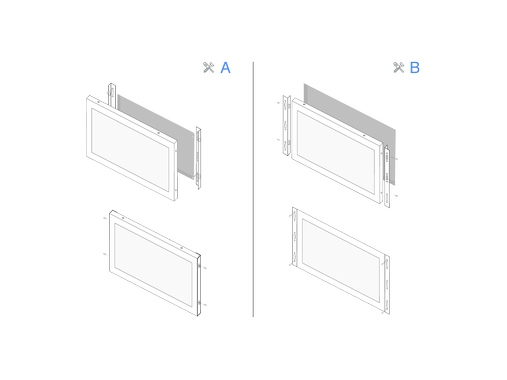

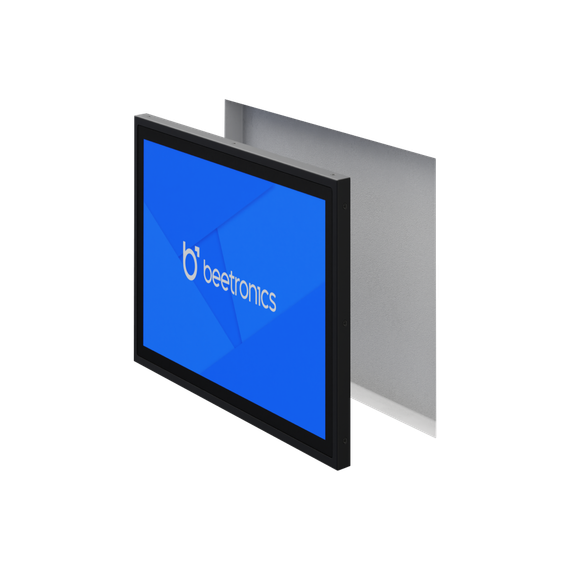

Thanks to numerous mounting options, the 15 inch metal touchscreen can be seamlessly integrated into any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to embed the monitor in any environment.

15 Inch Touchscreen Metal (4:3)

Desktop or wall mounting

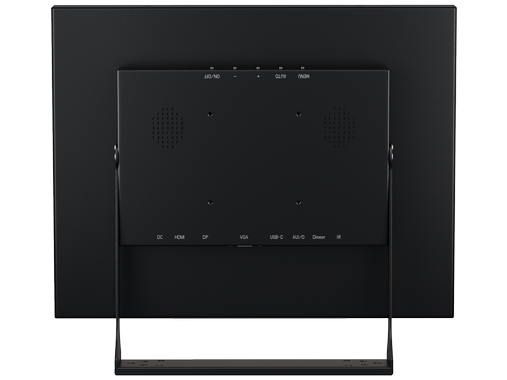

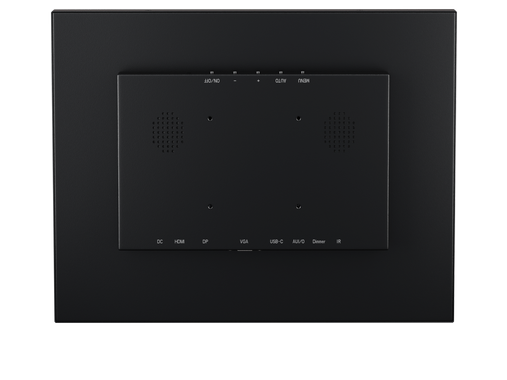

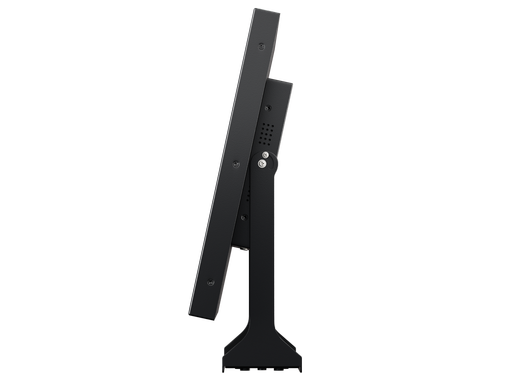

The Beetronics 15TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

15 Inch Touchscreen Metal (4:3)
General
Manufacturer
Beetronics
Item number
15TSV7M
Previous model
15TSM
Product name
15 Inch Touchscreen Metal (4:3)
Warranty
2 years
Datasheet
User Manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
15.0 inches (381 mm)
Panel type
IPS-LCD
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
350 cd/m2
Contrast
1500:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Surface
Tempered glas
Capacitive, 10-point multitouch (PCAP)
Touch Control
Stylus, hand, glove

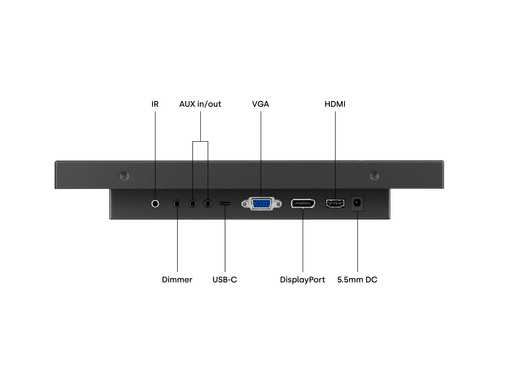

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
AUX input
1x
AUX output
1x
USB-C
1x Video, Audio, Touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.

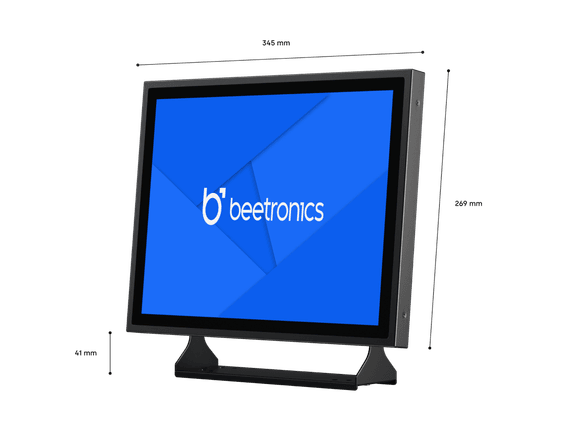

Size & weight
Colour
Black
Dimensions (without stand)
16.0 x 9.4 x 1.6 inches
Active area
12.9 x 9.9 inches
Weight
6.6 lbs (7.9 lbs with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
Typical 11.8 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-4°F to +140°F
Storage temperature
-4°F to +158°F
Operating humidity
20% - 85% non-condensing
Mounting
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601, CCC

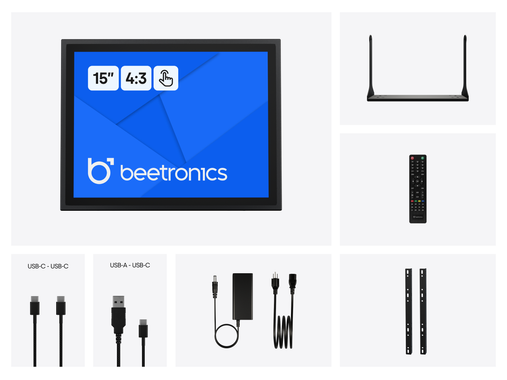

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
Compatible accessories
Stand
Compatible with VDK3 collapsible stand
Touch Pen
Compatible with CTS7 capacitive touchscreen stylus
15 Inch Touchscreen Metal (4:3)
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
Product name Model In Stock Quantity Price
15 Inch Touchscreen Metal (4:3)
15 Inch Touchscreen Metal (4:3) $665.00
15TSV7M
$665.00
Wall Mount Bracket, Flat
VWB1
$35.00
Metal Stand (13 to 17 Inch Displays)
VDK6
$79.00
Capacitive Touchscreen Stylus
CTS7
$15.00
HDMI Cable - 6 Feet
KHD2
$19.00
External Dimmer - 16 Feet
DMK7
$35.00
External Multi-Dimmer - 16 Feet
DMK8
$79.00
