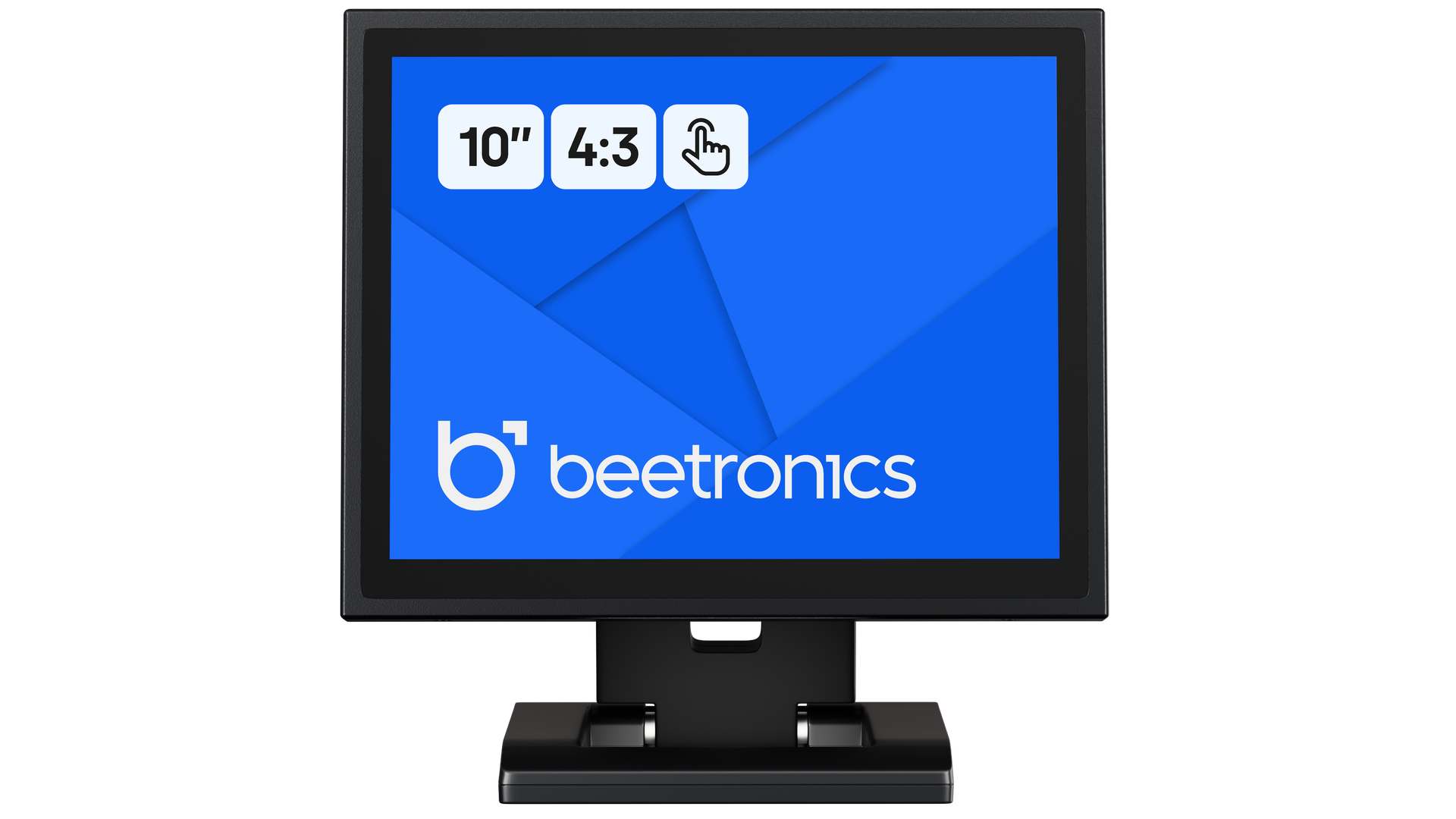

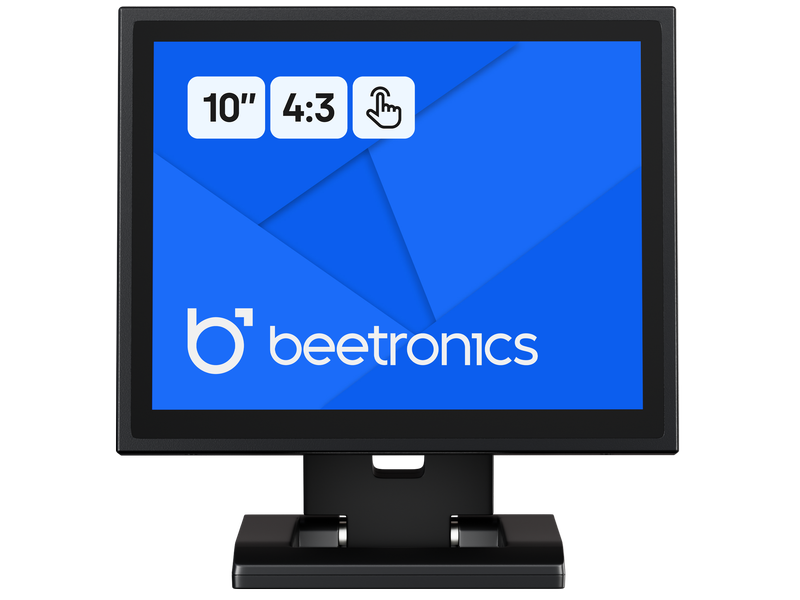

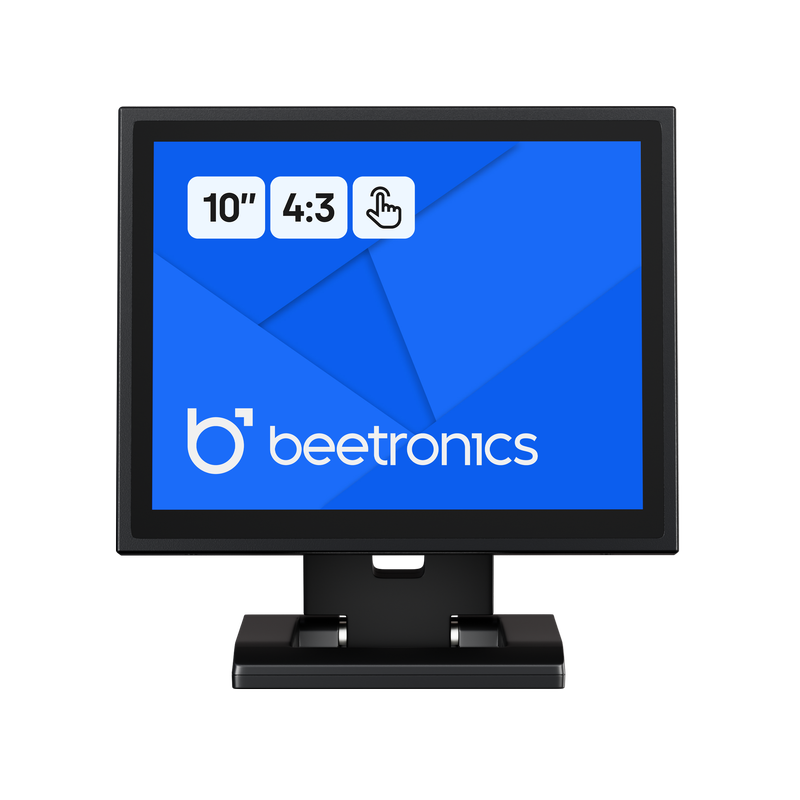

10 Inch Touchscreen Metal (4:3)
Model: 10TSV7M
100+ units in stock
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)
10 Inch Touchscreen Metal (4:3)

10 Inch Touchscreen Metal (4:3)

Model: 10TSV7M
100+ units in stock
  1. 4:3 multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 9.0 x 7.2 x 1.6 inches
  5. More specifications
Display Type
Monitor
Touchscreen
Order by 11.00 p.m. for Delivery on Thursday
  • Description
  • Specifications
  • Connectivity
  • Downloads

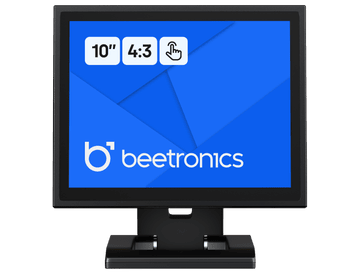

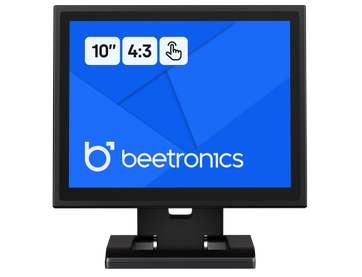

This 10 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

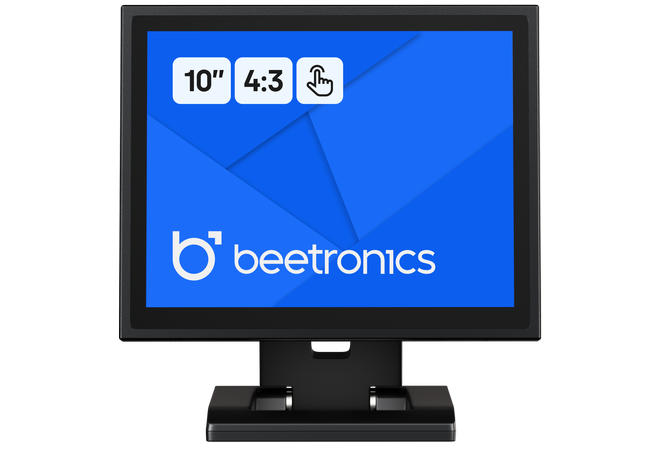

4:3 Multi-Touch Panel

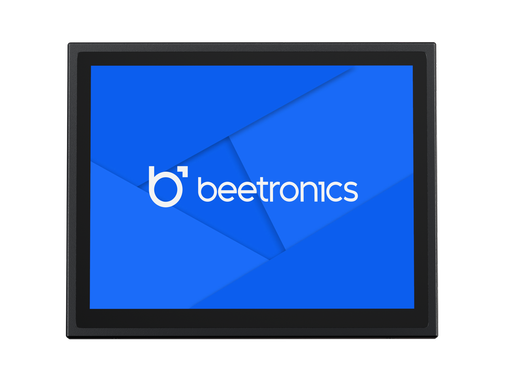

This 10 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 10TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

10 Inch Touchscreen Metal (4:3)

Compatible With Windows,
macOS, ChromeOS and Linux

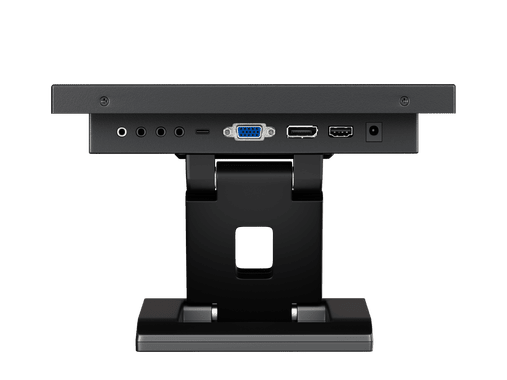

The 10 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

10 Inch Touchscreen Metal (4:3)

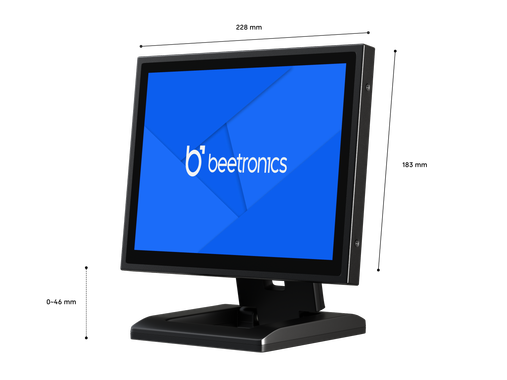

Designed for Professional Use

The 10TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input voltage from 9 to 33 Volts and features a fully dimmable backlight.

10 Inch Touchscreen Metal (4:3)

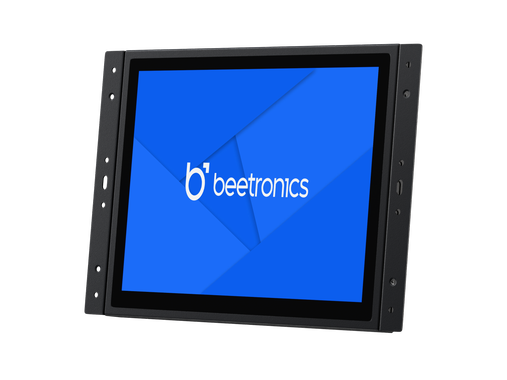

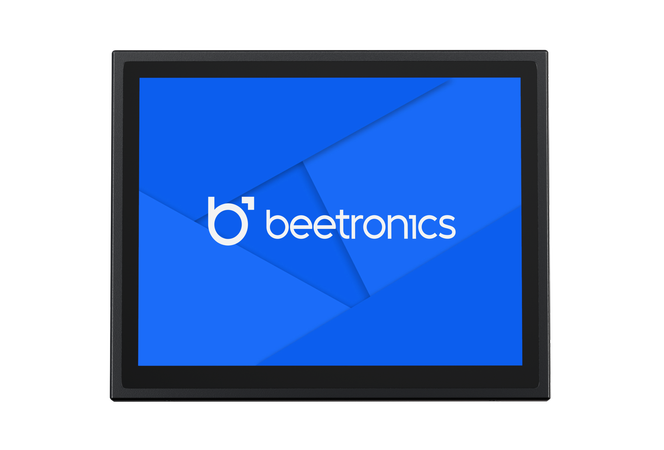

Easily Integrated

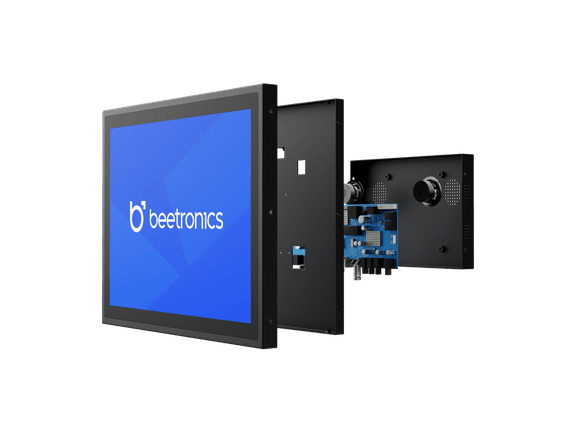

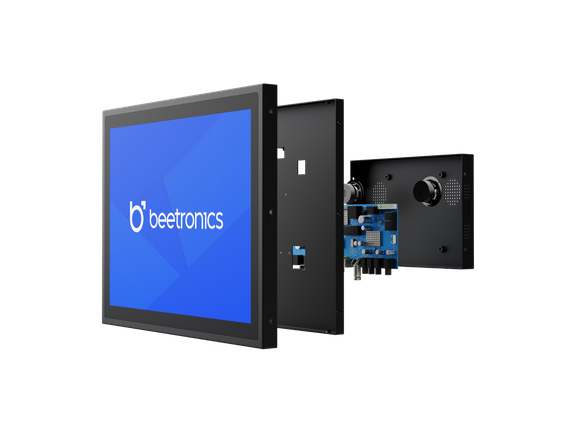

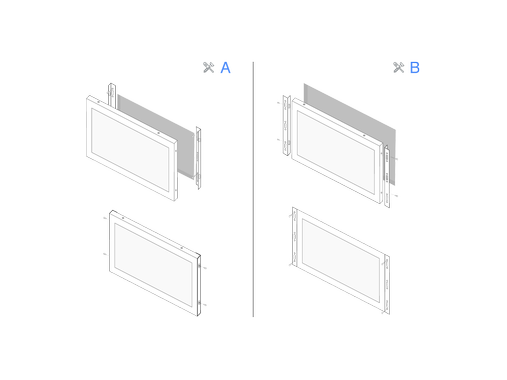

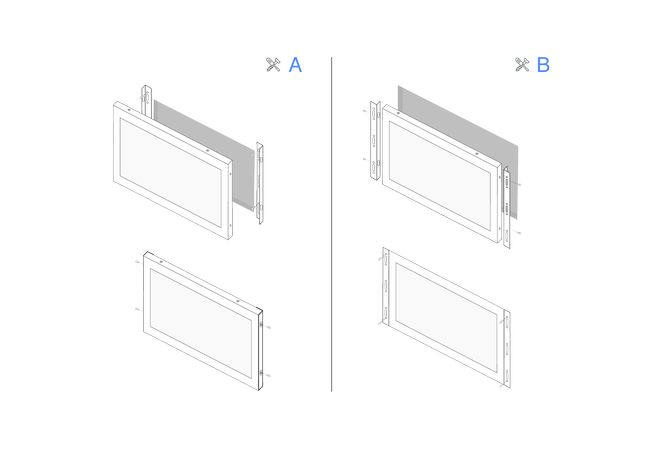

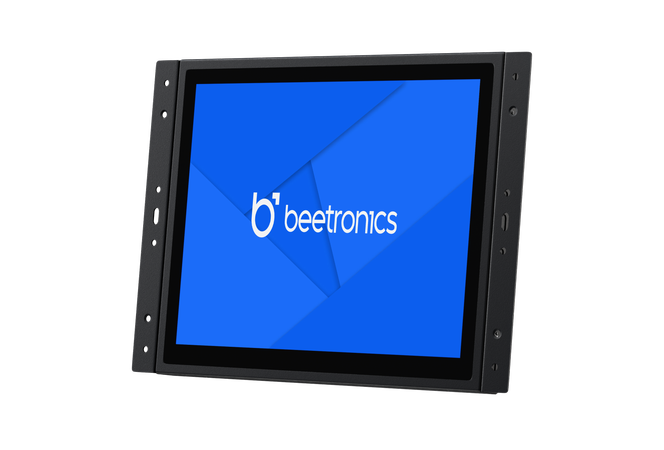

Thanks to numerous mounting options, the 10 inch metal touchscreen can be seamlessly integrated into any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to embed the monitor in any environment.

10 Inch Touchscreen Metal (4:3)

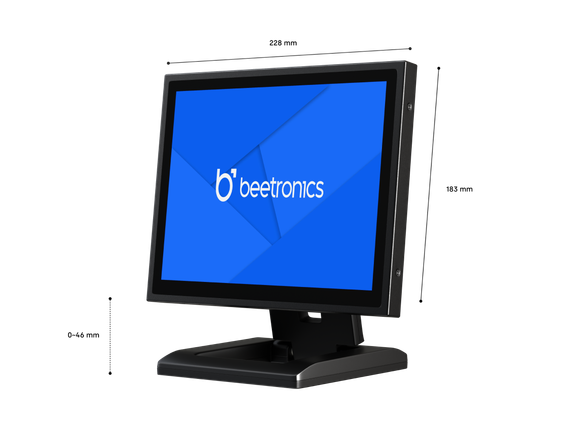

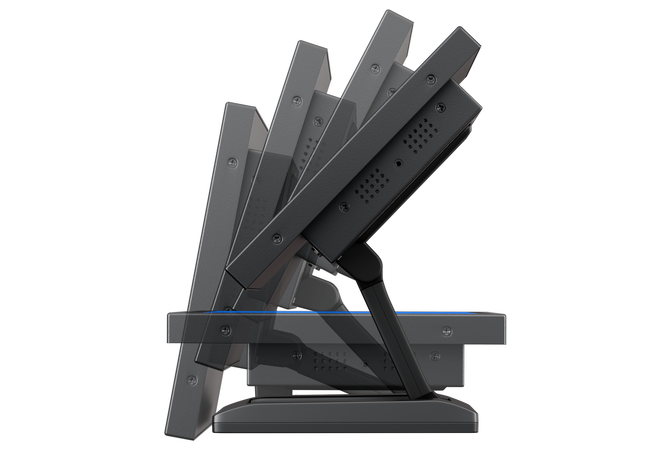

Desktop and Wall Mounting

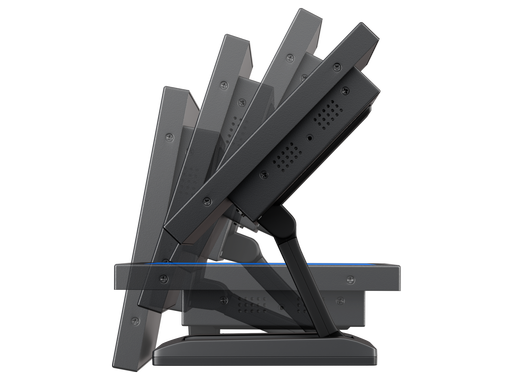

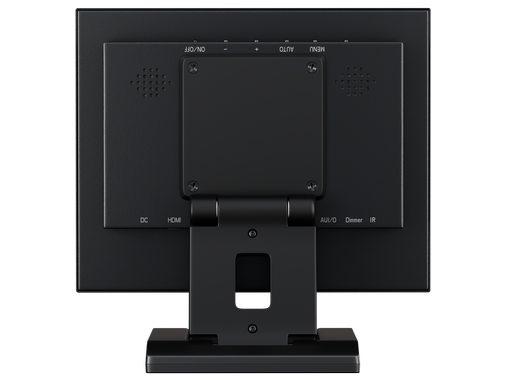

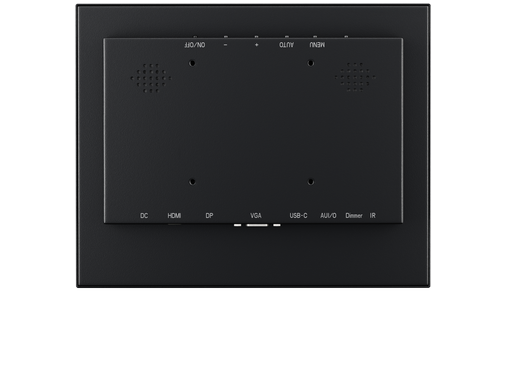

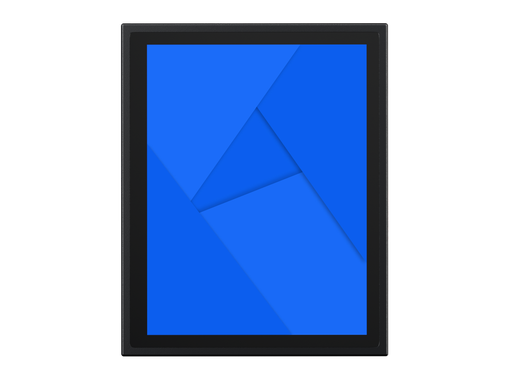

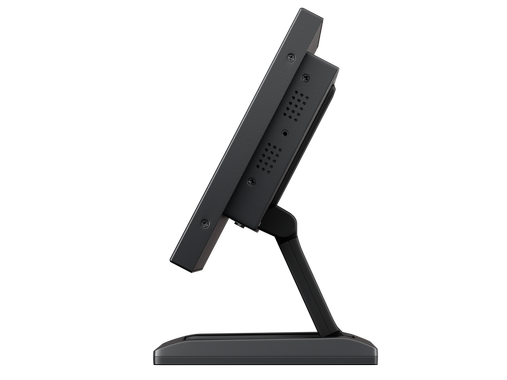

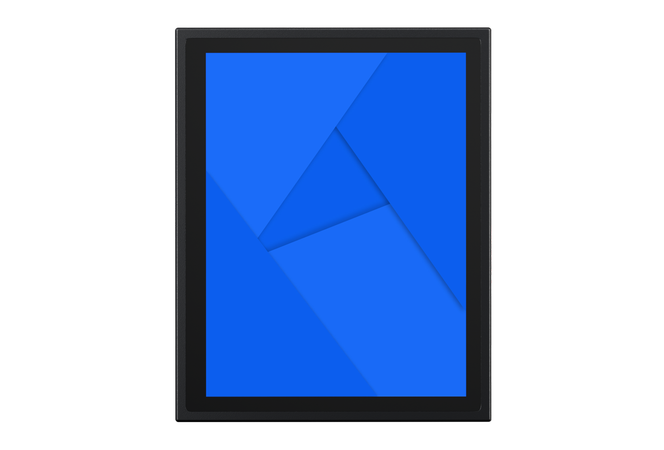

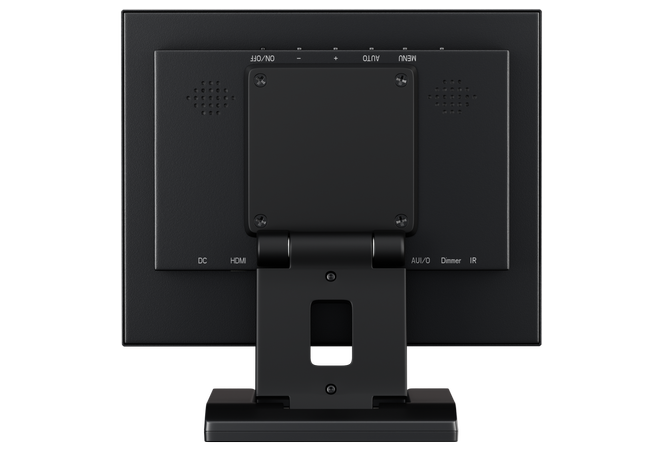

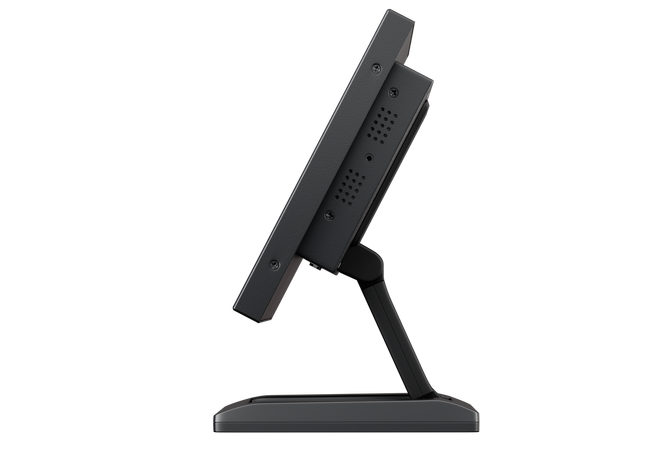

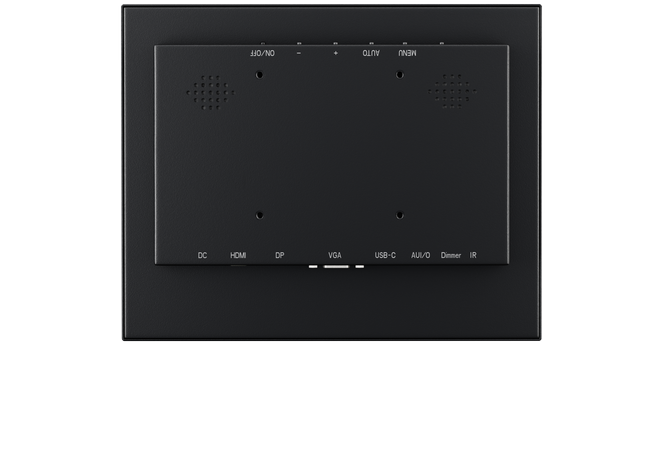

The Beetronics 10TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

10 Inch Touchscreen Metal (4:3)
General
Manufacturer
Beetronics
Item Number
10TSV7M
Product Name
10 Inch Touchscreen Metal (4:3)
Warranty
2 Years
Datasheet
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Panel
Diagonal Size
9.7 Inches (247 mm)
Panel Type
IPS-LCD
Response Time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
350 cd/m2
Contrast
800:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Surface
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Touch Control
Stylus, Hand, Glove

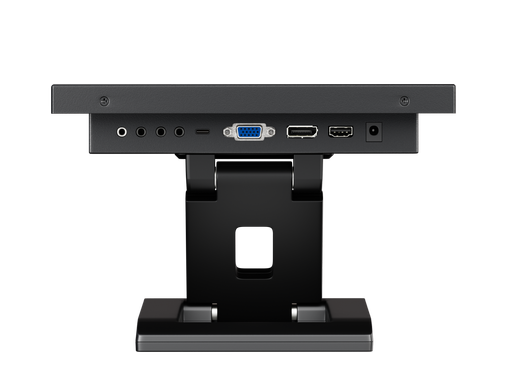

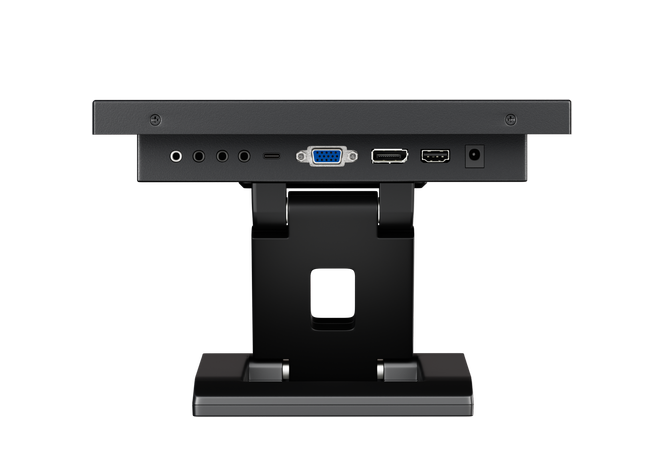

Connectivity
HDMI
1x
RCA
1x
VGA
1x
BNC (CVBS)
1x
USB-A
Only for Touchscreen Functionality
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x

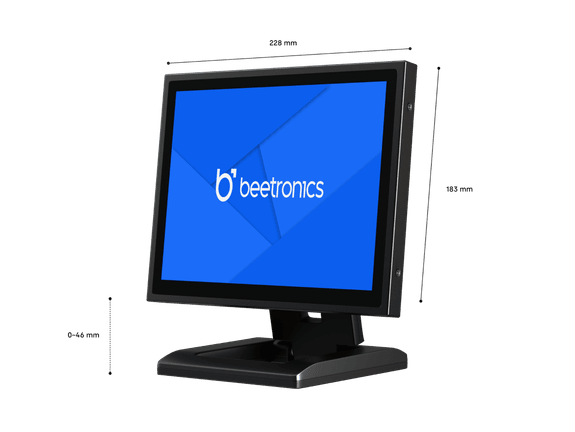

Size & Weight
Colour
Black
Dimensions (Without Stand)
9.0 x 7.2 x 1.6 Inches
Active Area
8.3 x 6.5 Inches
Weight
2.6 lbs (3.5 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Image can be mirrored, horizontally and vertically
Orientation
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-33V
Consumption
Typical 7.3 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
Impact Protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

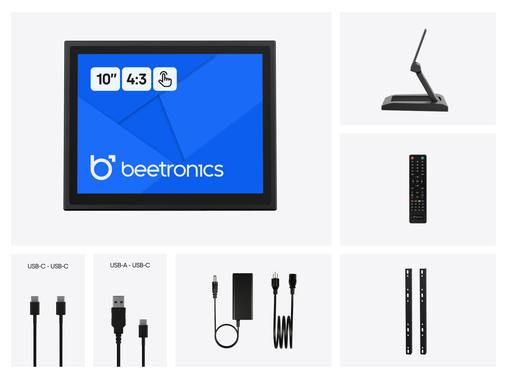

Package Content
Includes

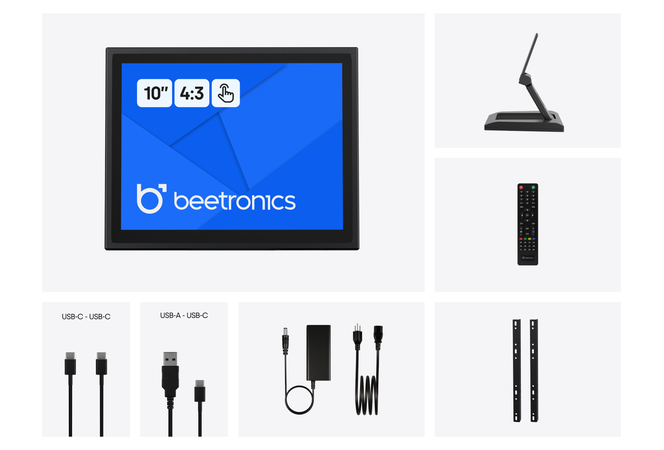

Touchscreen, USB Cable, Remote Control, AC Power Adapter, Stand, Installation Strips, Manual
Compatible Accessories
Infrared Extension
Compatible With Infrared Extender (IRC7)
Dimmer
Compatible With External Dimmer (DMK7/DMK8)
Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
VDK3 Included as Standard
Touch Pen
Compatible with CTS7 capacitive touchscreen stylus
10 Inch Touchscreen Metal (4:3)
Downloads
User Manual
Quickstart
Technical Drawing
3D Drawing
Datasheet
