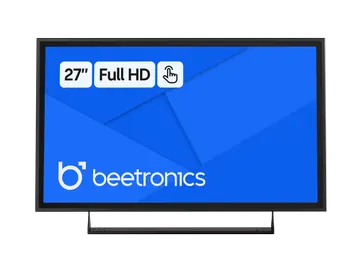

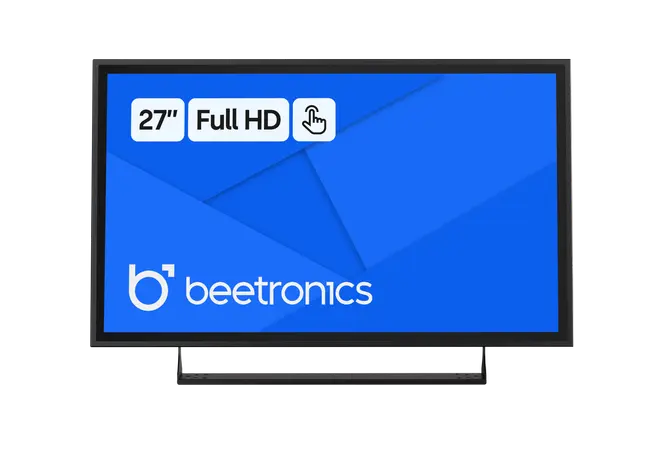

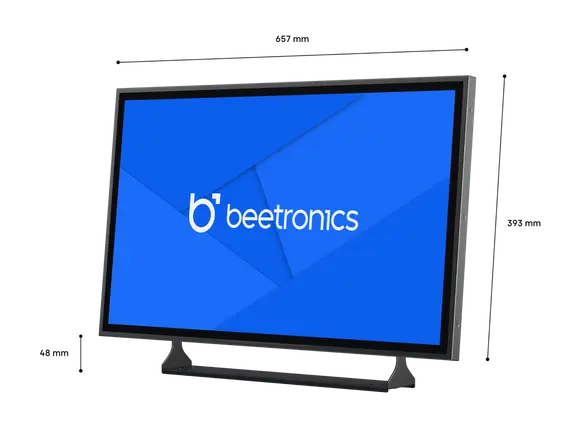

27 Inch Touchscreen Metal

Model: 27TS7M
80 units in stock

Product Information

  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 25.9 x 15.5 x 1.7 inches

This Full HD 27-inch touchscreen features a reliable multi-touch panel which ensures consistent and precise operation. The 27TS7M delivers best-in-class picture quality with exceptional 178° viewing angles. It is compatible with devices running Windows, macOS, ChromeOS, or Linux. Designed for professional use, this touchscreen monitor is easy to integrate and built for intensive applications.

Display Type
Monitor
Touchscreen
CAD $1,219.00
Order now for next-business-day shipping
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.

Product Highlights

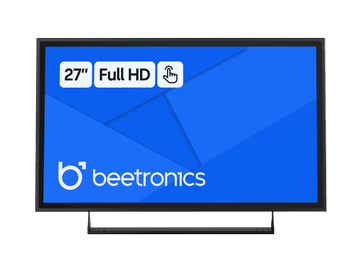

27 Inch Touchscreen Metal

Full HD Multi-Touch Panel

Equipped with a native Full HD IPS panel, this touchscreen offers outstanding image quality with vibrant colors and excellent 178° viewing angles. The 27TS7M includes a capacitive multi-touch screen that supports up to 10 simultaneous touch points. This allows for precise operation and enables gestures such as swiping, zooming, and pinching.

27 Inch Touchscreen Metal

Compatible With Windows, macOS and Linux

The 27-inch touchscreen monitor is compatible with devices using a Windows, macOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

27 Inch Touchscreen Metal

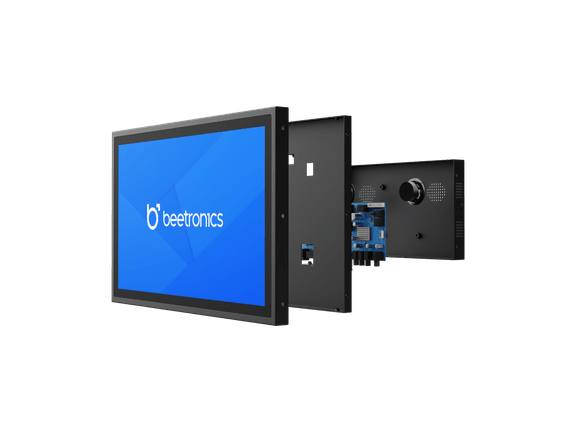

Designed for Professional Use

The 27TS7M is designed for continuous operation in professional applications. Built with industrial-grade components, it delivers reliable performance across a wide range of operating conditions. The monitor features a fully dimmable backlight and supports a wide 10–36V DC input range, providing flexibility for professional installations.

Mounting Options

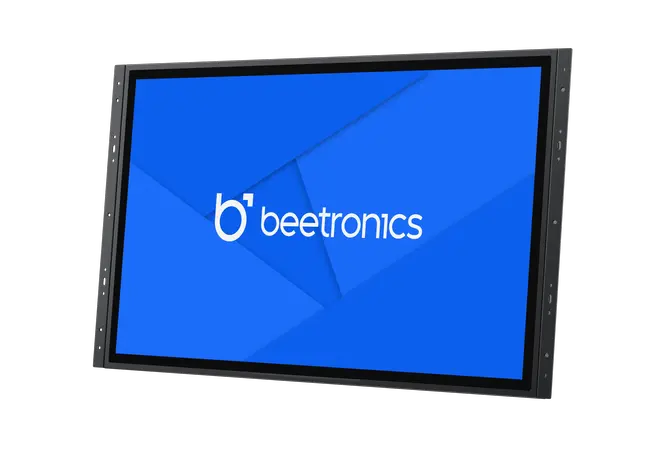

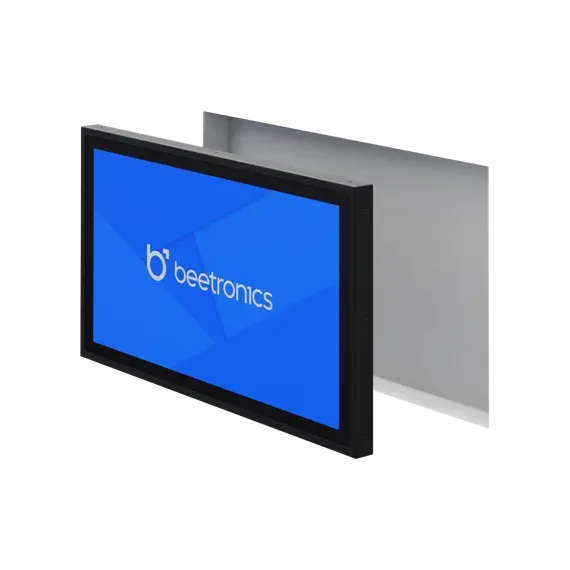

Flush-Mount

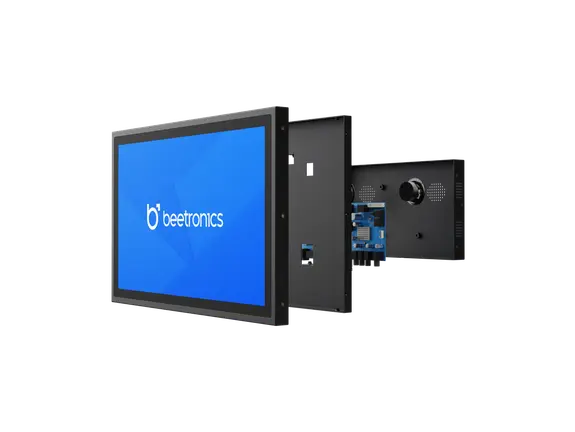

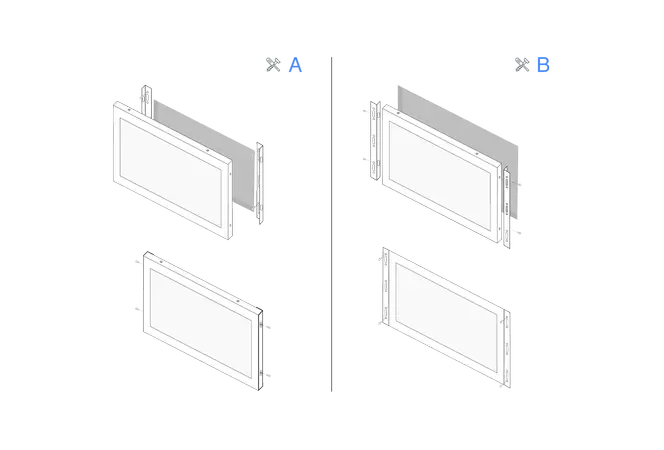

The touchscreen is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

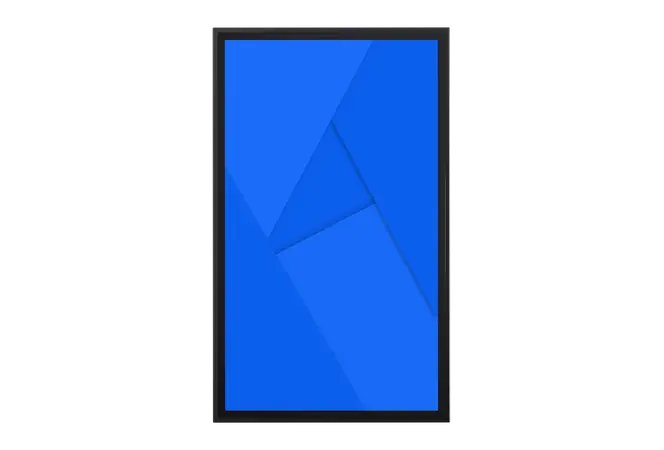

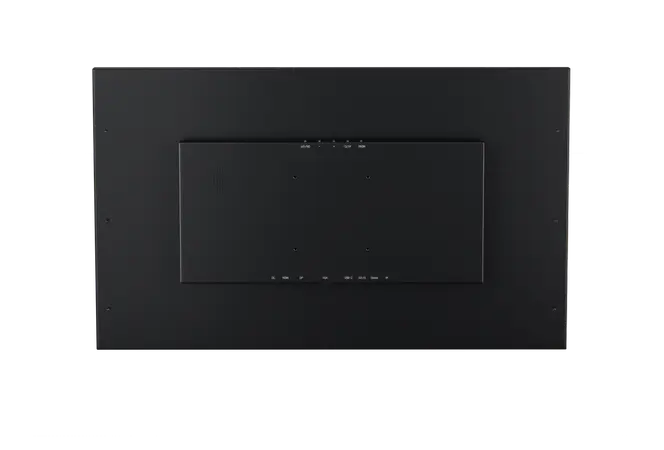

The touchscreen includes a universal 100mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

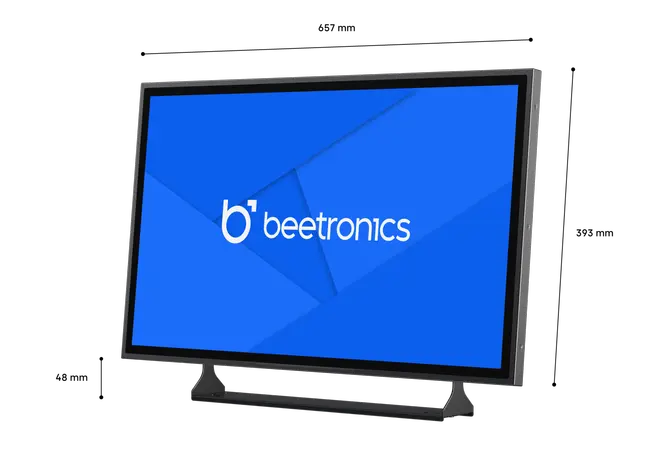

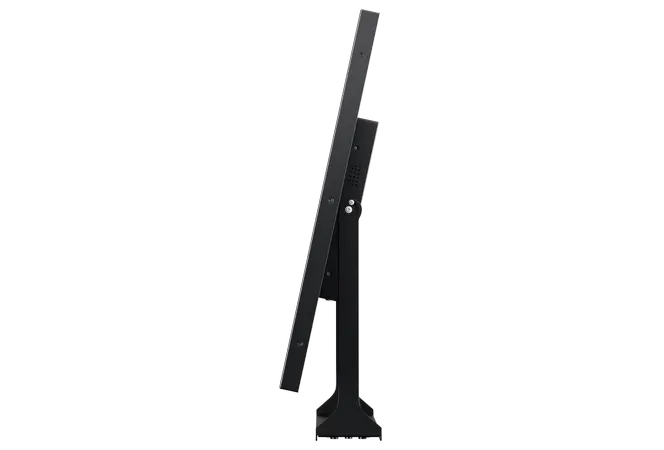

Stand

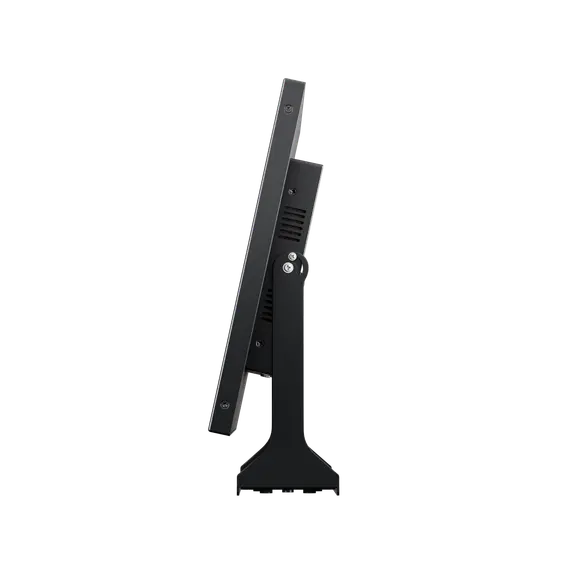

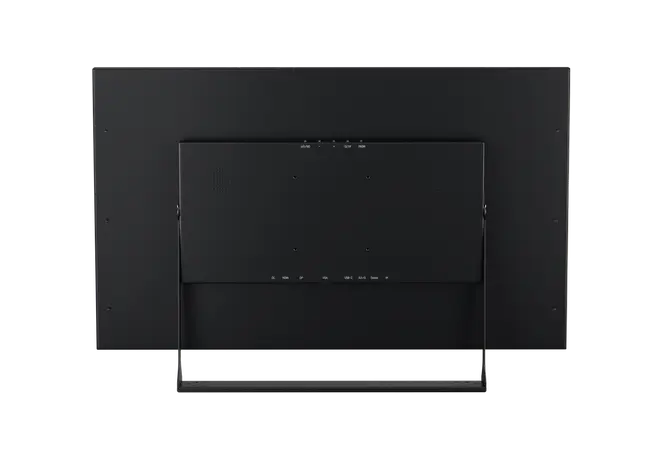

The touchscreen comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 100mm VESA mount. This allows the touchscreen to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Specifications

General

Manufacturer
Beetronics
Product Line
Touchscreen Series
Product Name
27 Inch Touchscreen Metal
Item Number
27TS7M
Product Type
Touchscreen
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF

Display Architecture

Aspect Ratio
16:9 (4:3 Adjustable)
Native Resolution
1920 x 1080
Pixels Per Inch
82 PPI
Diagonal Size
27.1 Inches (688 mm)
Panel Type
IPS-LCD
Backlight
LED
Surface
Tempered Glass
Supported Orientation
Landscape, Portrait, Face-up

Display Performance

Maximum Brightness
300 nits (typical)
Minimum Brightness
1 nit
Contrast
3000:1
Viewing Angle
178° Horizontal, 178° Vertical
Response Time
10 ms
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Colour Encoding System
PAL/NTSC/SECAM

Touch Technology

Touch Technology
Capacitive (PCAP)
Touch Points
10-Point (Multi-Touch)
Touch Interface
USB HID-Compliant
Touch Control
Stylus, Hand, Glove
Gesture Support
Tap, swipe, scroll, pinch-to-zoom (dependent on host system OS and application)
Touch Drivers
Download Touchscreen Driver

Operational Features

Audio
Dual Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.

Software & Compatibility

Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Tahoe, Sequoia, Sonoma
Linux
All Linux Distributions
Brightsign
All BrightsignOS Versions
Samsung DeX
All Samsung DeX Versions

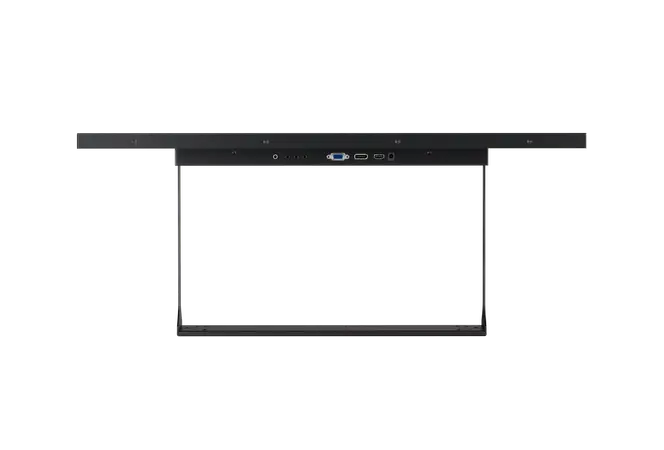

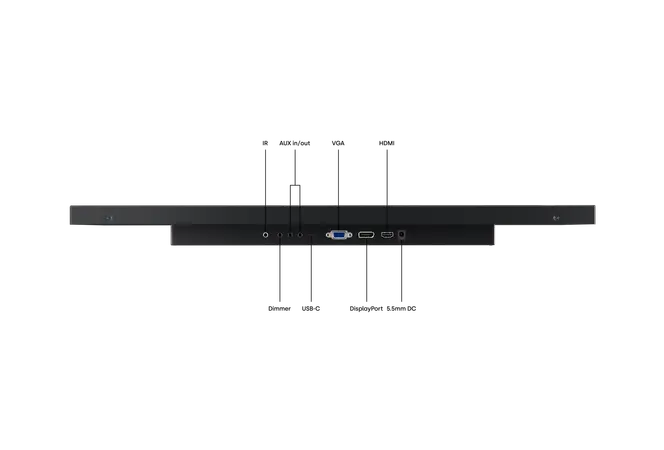

Connectivity

HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, Audio, Touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x

Mechanical

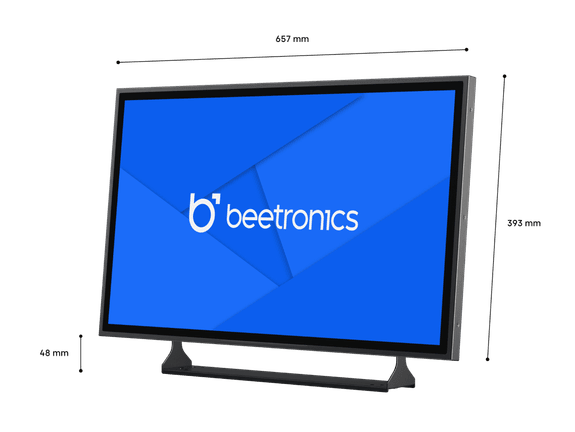

Dimensions (Without Stand)
25.9 x 15.5 x 1.7 Inches
Active Area
25.1 x 14.7 Inches
Weight
16.7 lbs (19.4 lbs With Stand)
Colour
Black
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP

Mounting

Wall Mount
VESA 100x100mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Supported Mounting Orientations
Landscape, Portrait, Face-up

Power

Input Voltage
19V DC
Operating Voltage Range
10-36V DC
Power Consumption
20 W (On), 0.4 W (Standby)
Power Supply
External DC Power Supply Included
Included Power Adapter
Input: 100-240V AC, 50/60Hz, Output: 19V DC, 2.5A
Power Connector
5.5 mm × 2.1 mm DC Barrel Connector
DC Cable Length
4.9 ft
AC Power Cord Length
3.3 ft

Environmental

Max. Non-Stop Operating Time
24/7
Operating Temperature
-10°C to +60°C (14°F to 140°F)
Storage Temperature
-20°C to +70°C (-4°F to 158°F)
Operating Humidity
10% - 90% Non-Condensing
Ingress Protection (IP)
IP65 Front Panel
Impact Protection (IK)
IK08
MTBF
50K

Compliance & Regulations

Regional Standards
CE, UKCA, FCC (Part 15), ISED (ICES-003)
Environmental Standards
RoHS, REACH, WEEE, California Proposition 65, Conflict Minerals (3TG; supplier declaration-based)
Industry Standards
Maritime: IEC 60945, DNV-CG-0339 (Requires BEE-PSU1-MAR); Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455
Compliance Scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance Statement
Download PDF

Package Content

Includes

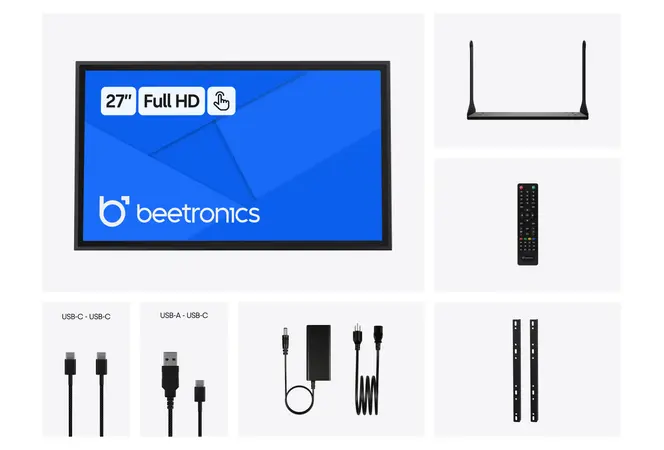

Touchscreen, USB-C to USB-C Cable, USB-C to USB-A Cable, Mounting Strips, Stand, Remote Control, Power Adapter, Quickstart
